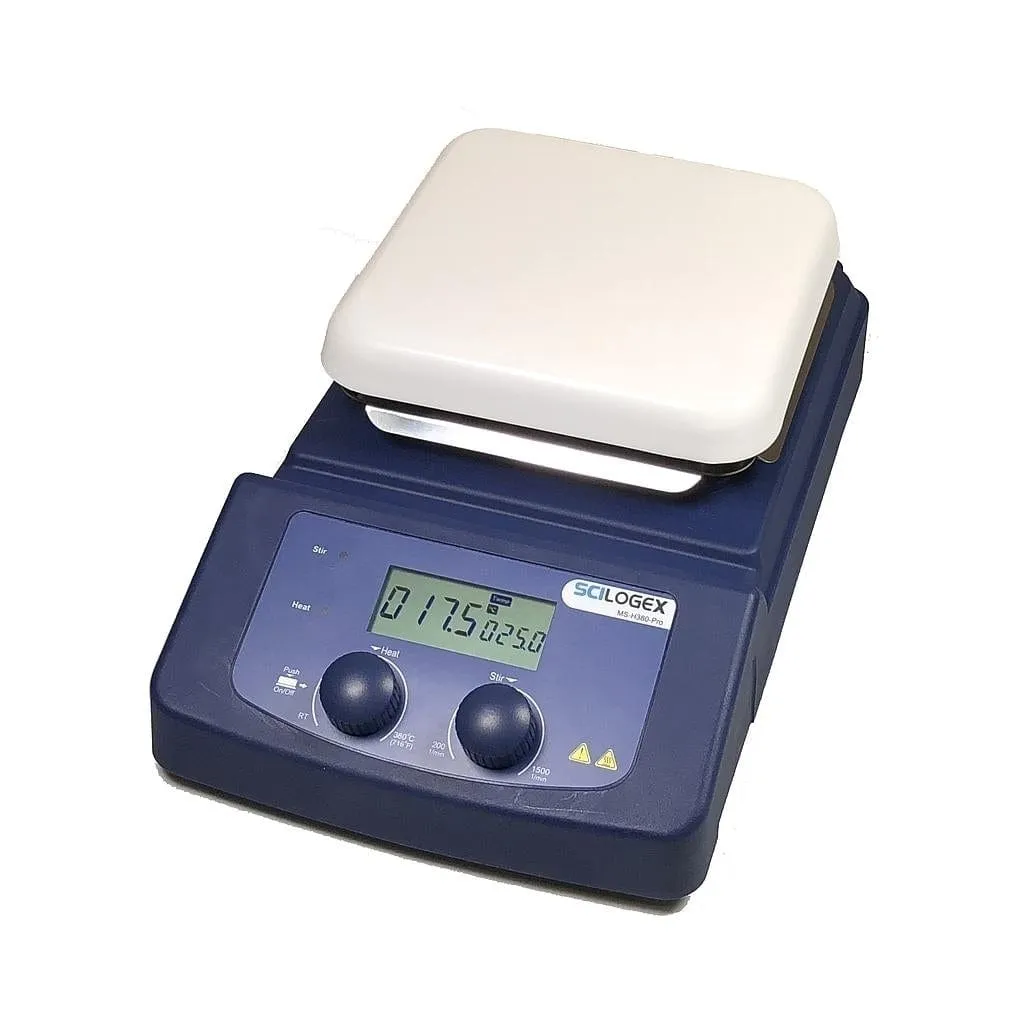

SCI380HS-Pro 5.5 x 5.5 in. LCD Digital Magnetic Hotplate Stirrer Features:
- Heat only, stir only or heat and stir together functions
- Digital temperature control with max. temperature at 380°C
- Digital speed control with max. speed up to 1500rpm
- High-resolution LCD displays actual temperature and speed
- Brushless DC motor is maintenance-free
- Ceramic plate for chemical resistance and easy clean
- Aluminum cover with ceramic work plate allows for immediate heat transfer
- Electronic speed control for constant speed even during changes in load
- External temperature control is possible with temperature sensor PT1000
- Hot warning sign if the temperature is above 50°C
- Max. stirring quantity of H2O at 5L
- cTUVus approved for UL and CSA
- 2 Year Warranty
The new SCI380HS-Pro hotplate-stirrer is a very economically priced LCD digital hotplate-stirrer ideal for temperatures below 380°C. This compact unit can be used as a hotplate, stirrer or combination.
SCILOGEX 380°C magnetic hotplate stirrers include all leading safety standards and are chemically-resistant with a white ceramic work plate. They can be used in physical, chemical, analytical and biological laboratories.
SCI380HS-Pro 5.5 x 5.5 in. LCD Digital Magnetic Hotplate Stirrer Specifications:
Work plate dimension | 140x140mm |
Work plate material | Aluminum cover with ceramic coating |
Motor type | Brushless DC motor |
Motor input power | 2.4W |
Motor output power | 1.8W |
Power | 510W |
Heating output | 500W |
Voltage | 100-120V 60Hz |
Stirring positions | 1 |
Max. stirring quantity | 5L |
Max. magnetic bar[length] | 50mm |
Speed range | 20-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Heating temperature range | Room Temp. 5°C. - 380°C |
Overheat protection | 420°C |
Temperature control accuracy | ±1°C |
External temperature sensor | PT1000 (accuracy ±0.5°C) |
Control accuracy of sensor | ±20rpm |
Protection class | IP21 |
Dimension[WxDxH] | 320x180×108mm |
Weight | 2.2kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
