Product Details
＋

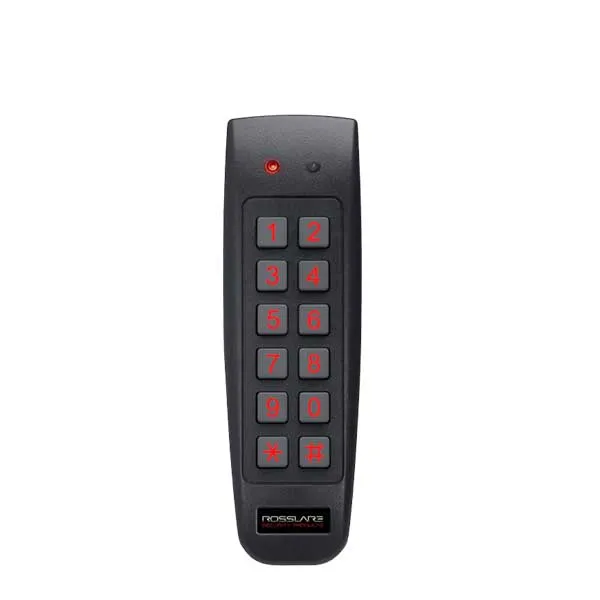

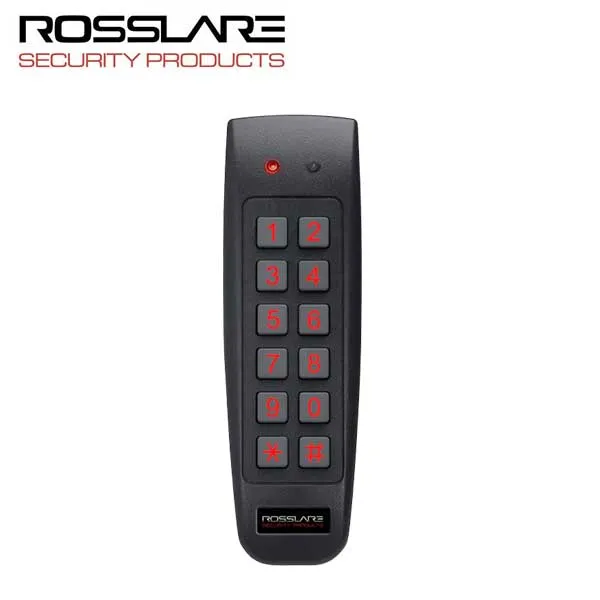

The AYC-G64 offers programmable PIN and proximity transmission formats, LED control and tamper detection, providing extra security and flexibility.
Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night, making this unit ideal for residential and commercial applications.
Features:
- Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large, highly-visible RED backlit keypad 2 tri-colored LEDs and an integral sounder for programming and operation
- User friendly menu, based on keypad, LED and sounder indicators
- Back and cover optical tamper detection and output
- Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
- Automatically recognizes Rosslare’s PS-x25T intelligent power supply family
converting it into a 500-user standalone controller with secure relays
| Operating Voltage Range |
5–16 VDC |
| Input Current | 105 mA |
| Input Current Max | 140 mA |
| LED Control Input |
Dry Contact N.O. |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Dimensions | 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
