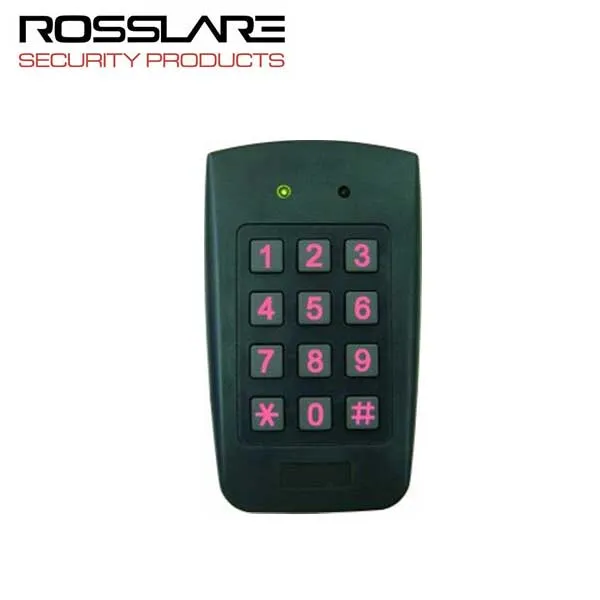

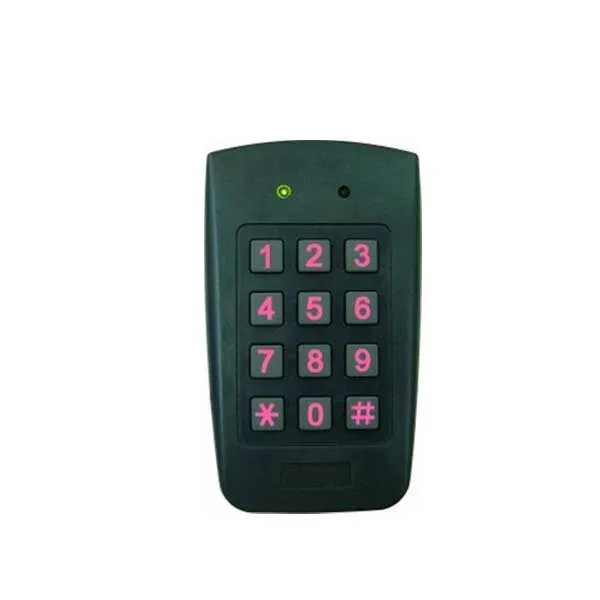

Name: Rosslare - AYCF54 - Convertible 3x4 Backlit PIN Reader & Controller
SKU: 291326

Product Details ＋

The AYC-F54 offers programmable PIN transmission formats, LED control and tamper
detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its rugged ultraviolet-resistant housing and waterproof enclosure for maximum durability. The backlit keypad is clearly visible day or night,
making this unit ideal for residential and commercial applications.

Features:

Supports 4- to 8-Digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, high-visibility RED backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output

Operating Voltage Range	5–16 VDC
Input Current	75 mA at 12 VDC
Input Current Max	110 mA at 16 VDC
Keypad	3x4 keypad for local programming and 4 to 8 digit PIN codes entry
Operating Temperature	-30˚C to 65˚C (-22˚F to 150˚F)
PIN Code Formats	8 selectable formats, from single to 8-digit PIN codes, including: – Wiegand 6-Bit or 8-Bit, nibble/parity options, optional Rosslare format – 1–5 keys, fixed 4 keys, 6 keys BCD w/Facility code, Wiegand 26- bit – 3x4 Matrix single key – 1 to 8 keys BCD, Clock & Data
Dimensions	120 x 76 x 21 mm (4.72 x 2.99 x 0.83 in.)
