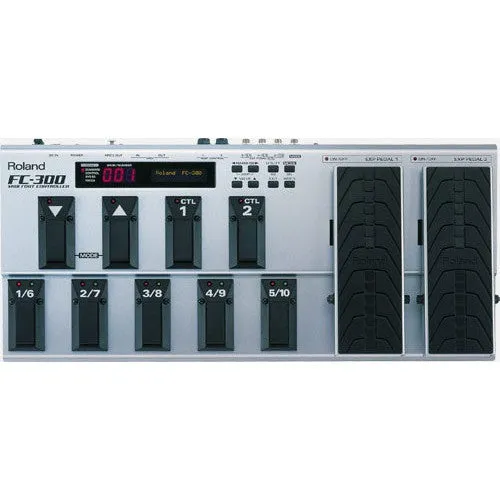

Roland FC-300 MIDI Foot Controller FC300

The FC-300 sets a new standard of power, versatility and innovation for MIDI foot control. With features such as twin expression and control pedals and more, this advanced control station is a perfect companion for any performance-based MIDI instrument or device.

• Advanced MIDI foot controller with two assignable expression pedals, two control pedals, nine footswitches and expandability
• New Patch Mode stores up to 100 MIDI setups
• In addition to standard MIDI connection, newly developed RRC2 protocol adapted for bidirectional data flow between FC-300 and Roland RRC2-equipped products
• 3-way power supply and rock-solid metal construction for stage use
• Two Amp Control switches for controlling amp channels or effects

Control & Expression

The FC-300 is outfitted with nine industrial-grade footswitches and two programmable expression pedals for fast, easy control and expanded performance capabilities. The backlit LCD offers a high contrast view, even in the darkest stage environments.

Power Patches

Up to 100 sets of MIDI messages/parameters can be stored simultaneously in the FC-300 as patches. Complex MIDI transmission is made simple thanks to the FC-300’s ability to package chunks of data together in a single patch, and then transmit each data-burst via footswitch.

Programmable Switching

Two multipurpose switch-jacks are built into the FC-300. These programmable outputs are an ideal feature for guitarists, as they allow amp channels to be switched from clean to lead, for example, in sync with patch changes on the FC-300.

Controls

Number Pedal x 5 (1/6, 2/7, 3/8, 4/9, 5/10)
DOWN/UP Pedals
Control Pedal x 2 (1, 2)
Expression Pedal x 2 (1, 2)
PARAMTER Button x 2
VALUE Button x 2
UTILITY Button
MODE Button
EXIT Button
WRITE Button
POWER Switch

Display

7 segments, 3 characters (LED)
16 characters, 2 lines (backlit LCD)

Indicators

MODE Indicator (STANDARD/CONTROL/SYS EX/PATCH)
UTILITY Indicator
WRITE Indicator
Number Indicator x 10 (1--10)
DOWN/UP Indicators
Control Indicator x 2 (1, 2)
Expression Pedal ON/OFF Indicator x 2 (1, 2)

Connectors/Jacks

DC IN Jack
MIDI Connectors (IN, OUT)
RRC2 OUT Connector
AMP CONTROL 1 Jack
AMP CONTROL 2 Jack
EXP PEDAL 3 / CTL 3, 4 Jack
EXP PEDAL 4 / CTL 5, 6 Jack
EXP PEDAL 5 / CTL 7, 8 Jack
MODE Jack

Number of PATCH (PATCH Mode)

100

Power Supply

DC 9 V: AC Adaptor
Dry Batteries AA type x 6
RRC2

Current Draw

94 mA (ECONOMY MODE OFF)
61 mA (ECONOMY MODE ON)

Expected batery life under continuous use

Carbon:
6.5 hours or longer (ECONOMY MODE OFF)
12 hours or longer (ECONOMY MODE ON)
* These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual
Dry Batteries R6 (AA) type (carbon) x 6
Roland Service

Options

AC Adaptor PSA serise (BOSS)
Foot Switch: FS-5U (BOSS) , FS-6 (BOSS)
Expression Pedal: EV-5, FV-500H/500L (BOSS)

Size and Weight ( Dimensions )

Width

550 mm
21-11/16 inches

Depth

250 mm
9-7/8 inches

Height

76 mm
3 inches

Weight

5.3 kg
11 lbs. 11 oz.

excluding AC adaptor and including batteries

*The specifications are subject to change without notice.
