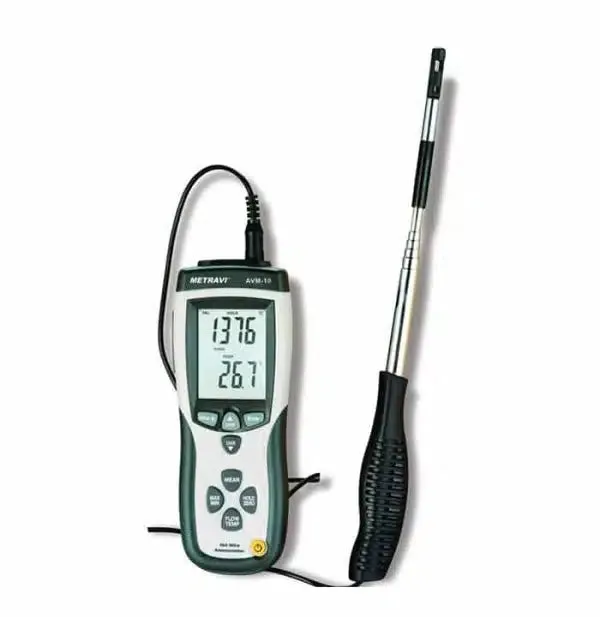

The Metravi AVM-10 Hot Wire Anemometer is a precision instrument designed for measuring air velocity and temperature in a wide range of environments. It uses a hot wire sensor for high-accuracy measurements of low airflows, making it especially suitable for HVAC applications, environmental testing, and laboratory use. With a USB interface, it offers convenient data transfer and logging, making analysis and reporting easier. Below are the detailed specifications and features of the Metravi AVM-10:

Key Specifications:

• Model: AVM-10
• Brand: Metravi
• Measurement Parameters:
  • Air Velocity: Measures wind speed with a hot wire sensor for precise readings.
  • Temperature: Measures ambient air temperature.

Measurement Ranges:

• Air Velocity:
  • Range: 0.1 to 25 m/s (meters per second)
  • Units: m/s, km/h, ft/min, knots, mph
  • Accuracy: Typically ±3% of reading 0.1 m/s for accurate measurements.
  • Resolution: 0.01 m/s for fine measurement detail.
• Temperature:
  • Range: 0°C to 50°C (32°F to 122°F)
  • Accuracy: Typically ±1°C or ±1.8°F.
  • Resolution: 0.1°C or 0.1°F.

Features:

• Hot Wire Sensor: Provides high sensitivity and accuracy for measuring low air velocities, making it ideal for precise airflow monitoring in ducts, clean rooms, and environmental chambers.
• Digital Display: Large, easy-to-read backlit LCD for clear visibility of readings, even in dimly lit environments.
• Data Hold Function: Allows users to freeze the displayed reading for easy recording and observation.

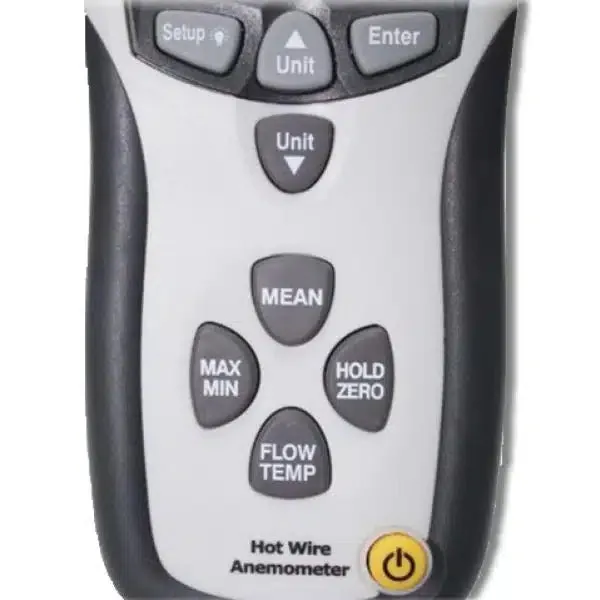

• Max/Min/Avg Function: Records and displays the maximum, minimum, and average readings for comprehensive analysis.

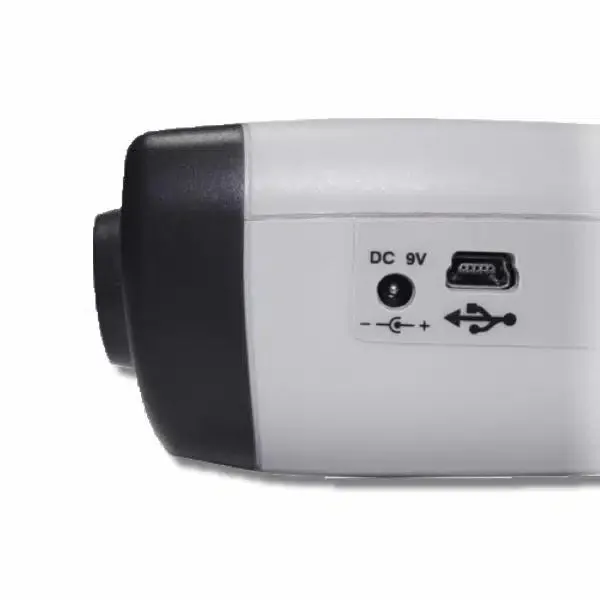

• USB Interface: Allows for direct connection to a computer for real-time data logging and transfer, making it easy to store and analyze data using compatible software.
• Auto Power Off: Automatically shuts off after a period of inactivity to conserve battery life.
• User-Friendly Design: Intuitive controls and a compact form factor make it easy to operate in various settings.

Power Source:

• Battery Operated: Uses standard batteries for portable use in different environments.
• Battery Type: Typically powered by a 9V battery.
• Low Battery Indication: Alerts the user when the battery is low, ensuring uninterrupted operation.

Safety and Compliance:

• Durable Construction: Built for use in industrial and laboratory settings with a robust, shock-resistant casing.
• Certifications: Meets industry standards for safety and precision measurement.
• Operating Temperature Range: Suitable for indoor environments and various temperature conditions during airflow testing.

Physical and Design:

• Compact and Lightweight: Designed for ease of transport and handling during field use.
• Color: Typically comes in a durable, industrial-grade blue or black finish.
• Warranty: One year against manufacturing defects.

Applications:

The Metravi AVM-10 Hot Wire Anemometer is ideal for:

• HVAC System Testing: Accurately measures airflow in ducts and ventilation systems to ensure proper air distribution.
• Clean Room Monitoring: Measures low air velocities with high precision, making it suitable for maintaining air quality standards in clean rooms.
• Environmental Testing: Assesses air movement and temperature in environmental studies and research.
• Industrial Process Control: Monitors airflows in production processes to ensure optimal conditions.
