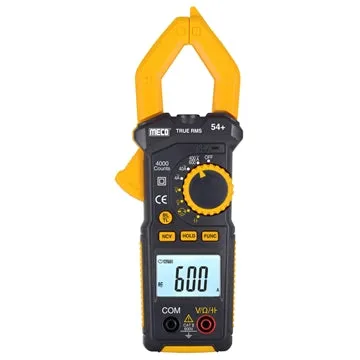

The Meco 54 Digital Clamp Meter is a versatile and reliable tool for measuring AC current, voltage, resistance, and capacitance. With TRMS capability and auto-ranging, it ensures precise measurements for both linear and non-linear loads. Its additional features, like NCV detection, torchlight, and backlit display, make it ideal for fieldwork, electrical diagnostics, and industrial maintenance.
Key Features:
- 3¾ Digit Display: Provides accurate readings with 4000 counts resolution.
- TRMS Measurement: Ensures reliable readings for non-linear loads.
- Auto Ranging: Automatically selects the appropriate range for convenience.
- AC Current Measurement: Up to 600A.
- AC/DC Voltage Measurement: Up to 600V.
- Capacitance Measurement: Up to 4mF.
- Resistance Measurement: Up to 40MΩ.
- Audible Continuity Test: Confirms circuit continuity with a sound alert.
- Diode Test: Check the health of diodes easily.
- Data Hold Function: Freeze the reading on the display for easy reference.
- Backlit Display: Ensures visibility in low-light conditions.
- Torchlight for Clamp: Integrated torch for working in dark environments.
- NCV Detection: Detect live wires with LED and buzzer indicators.
- Auto Power Off: Conserves battery life by shutting off when idle.
- Low Battery Indication: Alerts when the battery is running low.
- Jaw Opening: Accommodates cables with a diameter of 30mm (max)
Specifications:
- Current Range: Up to 600A AC
- Voltage Range: Up to 600V AC/DC
- Resistance Range: Up to 40MΩ
- Capacitance Range: Up to 4mF
- Display Count: 4000
Accessories Included:
- Test Leads – 1 Pair
- 1.5V 'AAA' Batteries – 2 Pcs (Pre-installed)
- Instruction Manual – 1 Pc
- Carrying Case – 1 Pc
