Name: Cameo Lights AURO SPOT Z300 LED Spot Moving Head 200W White LED (Black)
SKU: 518377

Product Details ＋

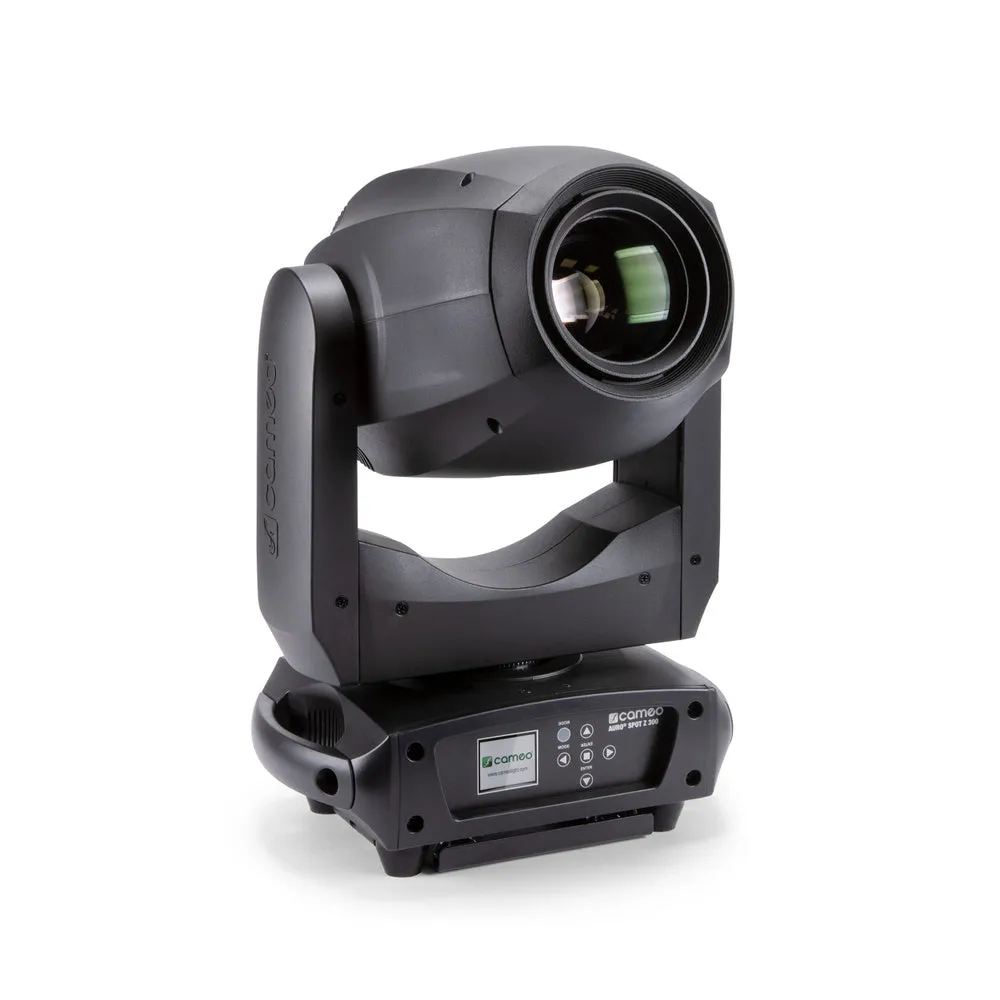

With fantastic gobo projections, morphing and mid-air effects, the Cameo AURO® SPOT Z 300 is made for impressive lighting design. Compact yet fully featured, the RDM-enabled spot moving head offers both a 540° and 630° pan and a 270° tilt with 16-bit resolution and automated position correction. The 10° to 25° zoom range facilitates both short- and long-range projections, which remain pin sharp at all times thanks to the motorised focus.

The AURO® SPOT Z 300 is equipped with an extremely bright, 200 watt cool white LED, with a lifetime of more than 20,000 hours. It is flicker-free and distinguishes itself with incredibly even light dispersion without any hotspots. A continuously adjustable colour wheel with eight brilliant colours, two prisms, two gobo wheels, six indexable and rotating exchangeable gobos and six fixed gobos means that the moving head is ideally equipped for exciting, professional performances.

The AURO® SPOT Z 300 can be controlled via DMX or be automated. Featuring freely programmable macros, it can be used as a standalone or operated in master/slave mode. DMMX functions include rapid strobe, gobo shake and smooth dimming. Cooling and silent operation are provided by a temperature-controlled fan in robust housing made with ABS and metal. 3- and 5-pin DMX connections and powerCON-compatible power sockets permit convenient daisy chaining, while the battery-powered 6-button display allows power-independent configuration. The AURO® SPOT Z 300 comes with a power cable and two Omega brackets.

Features

Compact spot moving head with 7,500 lm luminous flux & LED Lifetime >20,000 hours
10° to 25° zoom range
Extremely even light dispersion free of hotspots
Automatic position correction
Motorised focus
2 gobo wheels, 6 rotating gobos (indexable and exchangeable) and 6 fixed gobos open
Continuously adjustable colour wheel with 8 intense colours open
Indexable and rotating 5-facet linear and 6-facet circular prisms
4 programmable macros for standalone and master-slave operation
Soft frost filter for washlight effects
Flicker-free for use in TV, film and photo studios

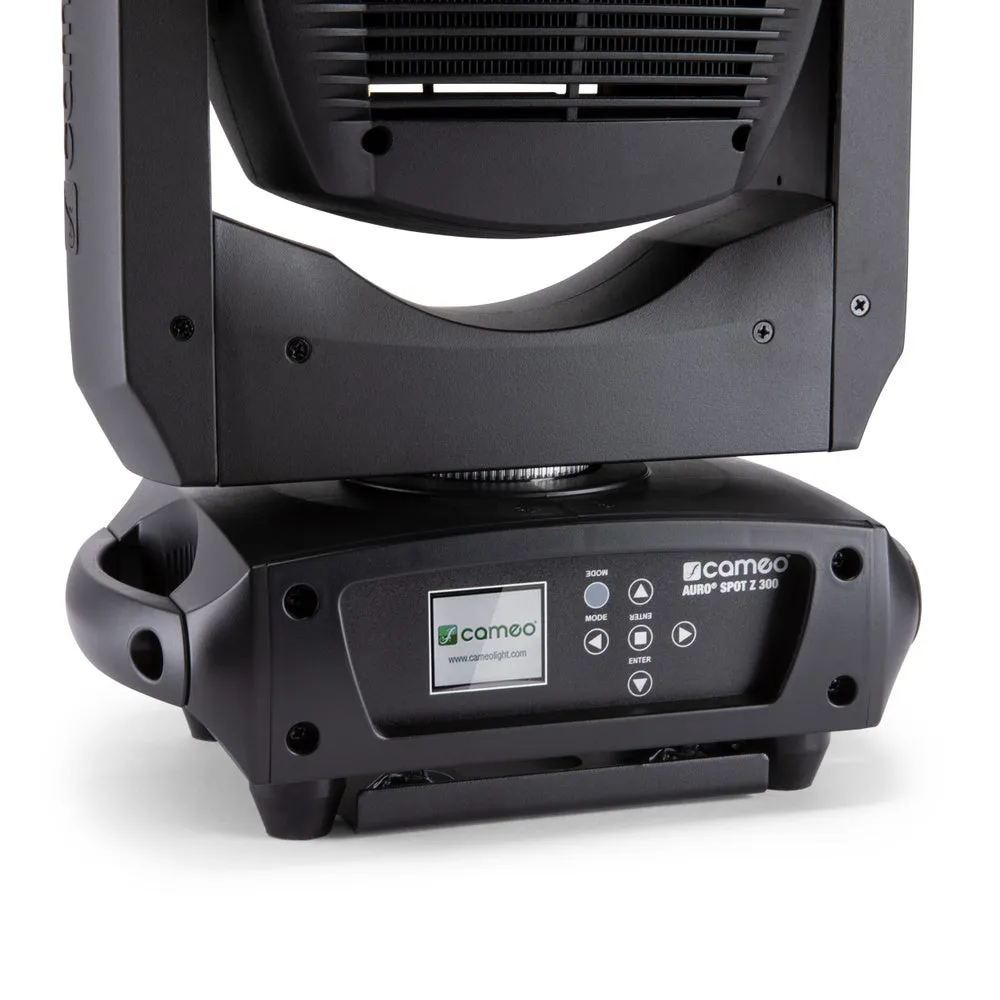

Battery-powered 6-button display for offline configuration

Specifications

Product type: LED Moving Lights
Type: Moving Head
Colour spectrum: Cold white
Number of LEDs: 1
LED type: 200 W
Refresh rate: 1200 Hz, 12000 Hz, 2000 Hz, 25000 Hz, 3600 Hz, 800 Hz
Dispersion: 10 - 25 °
Number of colours: Infinitely rotatable colour wheel with 8 colours white
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
DMX mode: 17-channel, 20-channel
DMX Functions: 2 x Prism, Auto programs, Colour wheel, Device Settings, Dimmer, Focus, Frost, Gobo Rotation, Gobo Shake, Gobo wheel, Motion Macro, Pan/Tilt, Pan/Tilt fine, Rotation Gobo Wheel, Strobe
PAN movement: 540° / 630°

TILT movement: 270°
Standalone modes: Auto programs, Master / Slave mode, User macros
Control: DMX512, RDM enabled
Controls: 4 x Arrow keys, Enter, Mode
Indicators: Backlit colour LCD display, Battery supply for mains-independent system settings (automatically rechargeable battery)
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 320 W
Fuse: T4AL250V (5 x 20 mm)
Operating Temperature: 0 - 40 °C
Relative Humidity: < 85 %, not condensing

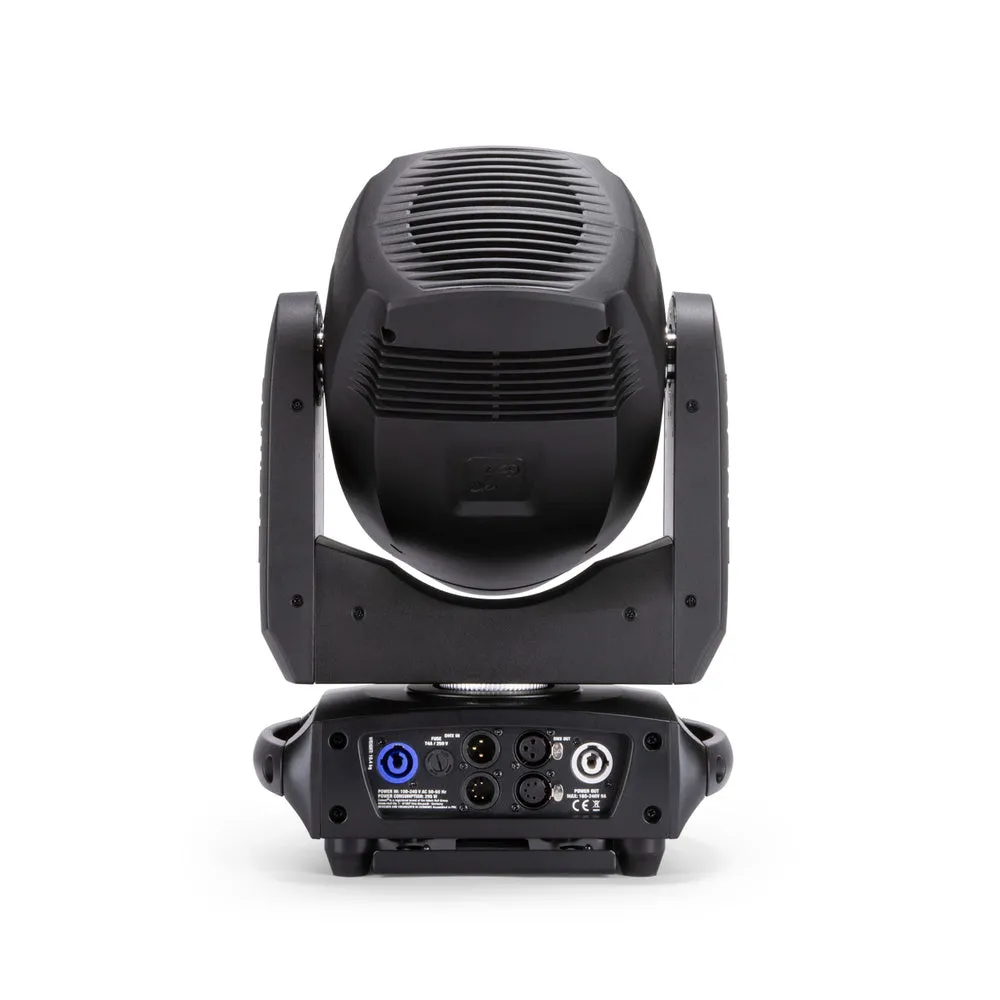

Power connector: Neutrik powerCON IN / OUT
Housing material: ABS plastic, Metal
Cabinet colour: Black
Illuminance: 162000 lx @ 1 m
Luminous flux; 7500 lm

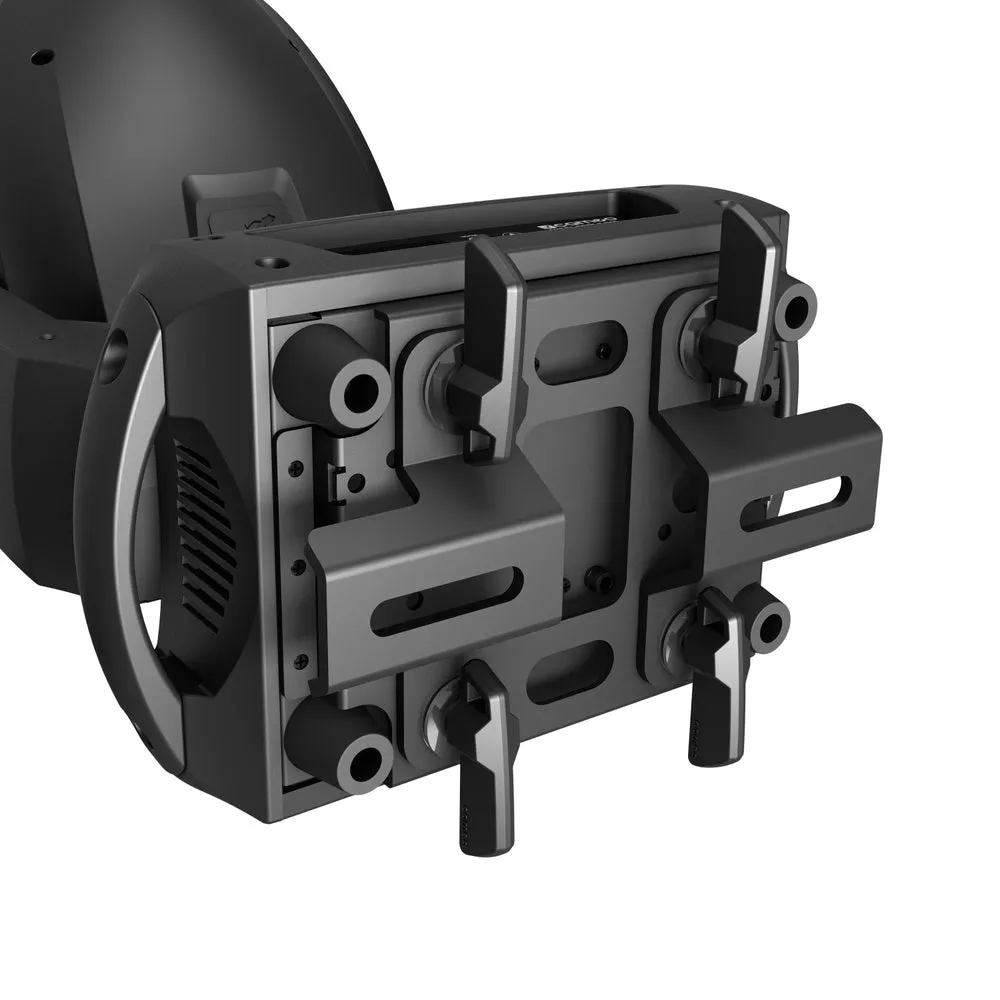

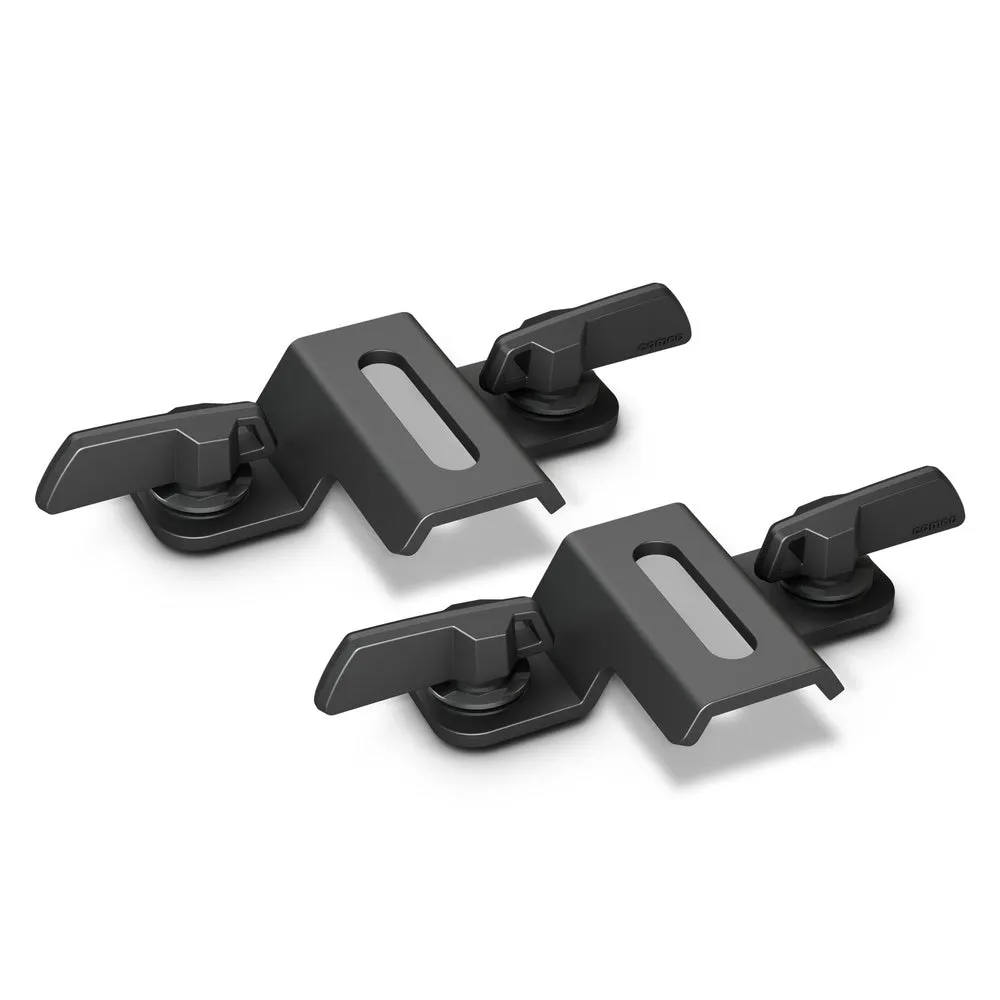

Accessories (included): 1 m power cable with Neutrik powerCON connector included, 2 x omega mounting
