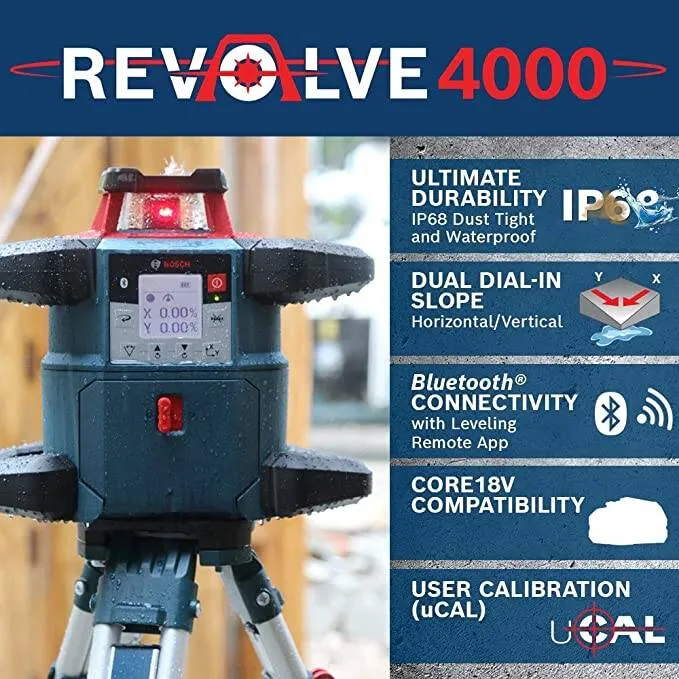

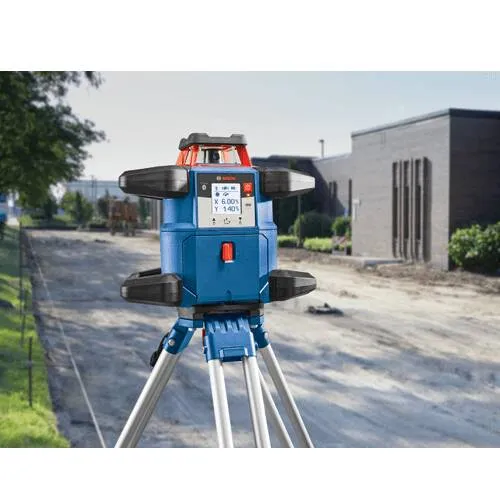

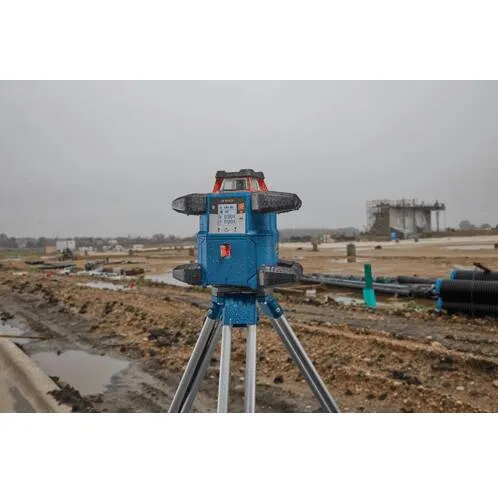

BOSCH GRL4000CHV Laser Package BENEFITS
- Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth® connectivity, uCAL user-calibration and more.

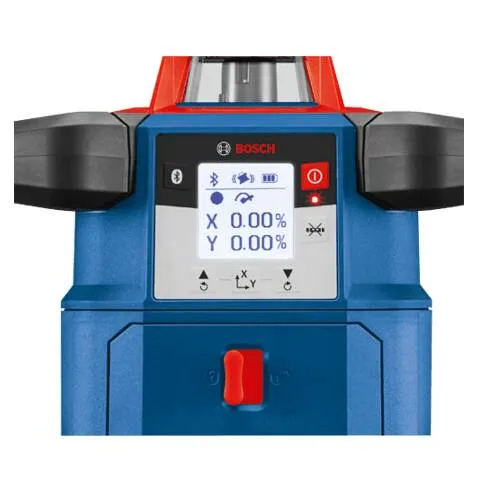

- Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes

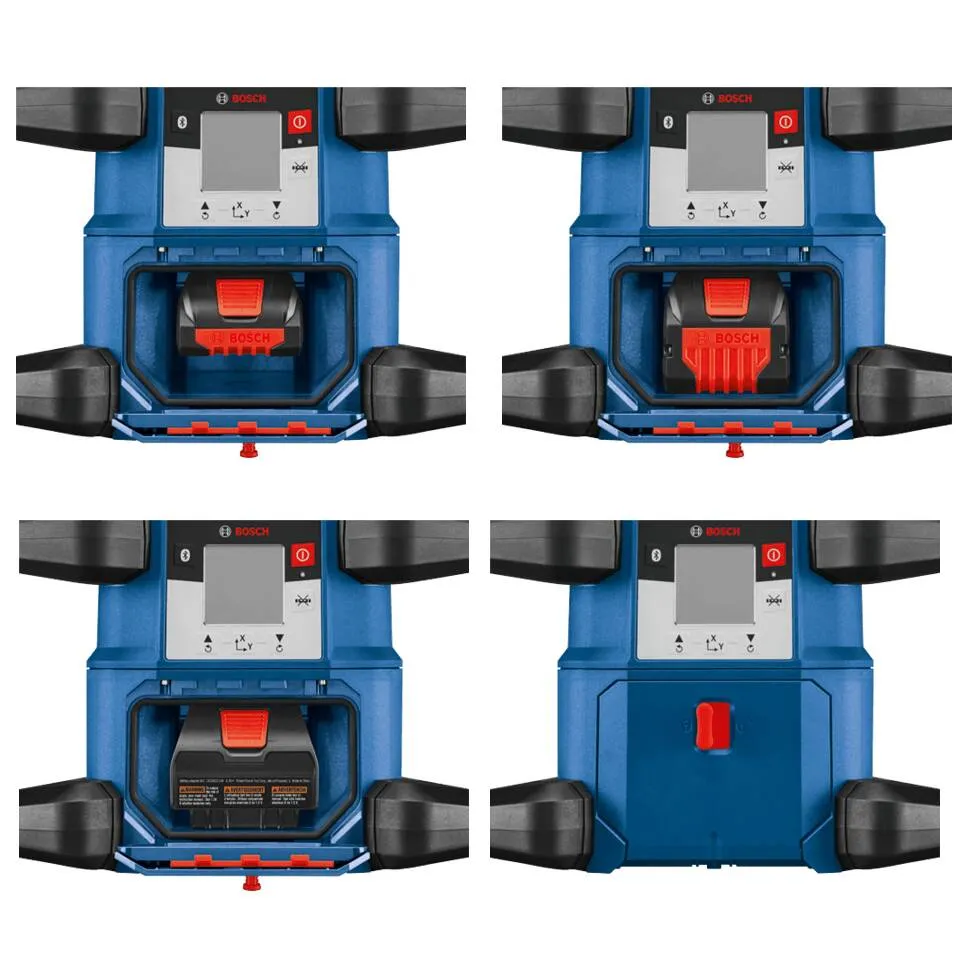

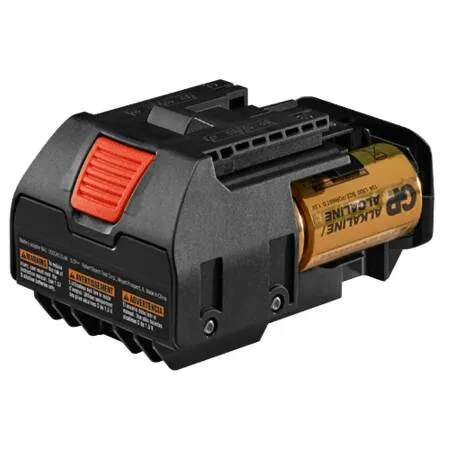

- Dual Power Source – for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
- Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
- Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
- uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
- Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
- Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications

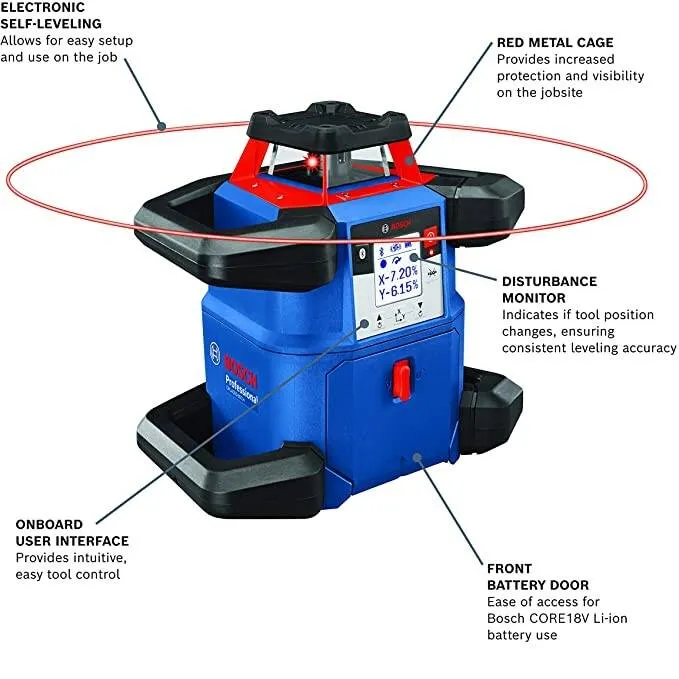

- Electronic self-leveling – allows for easy setup and use on the job
- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
- Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions

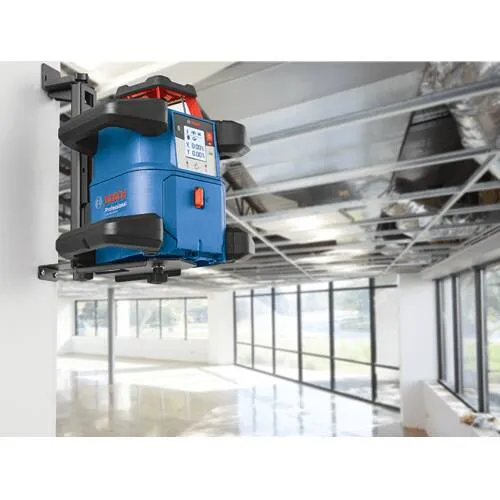

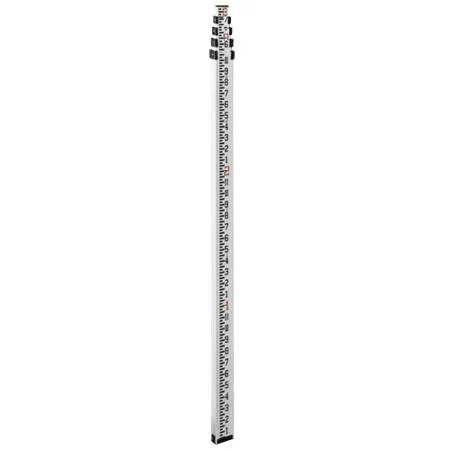

- Comprehensive kit – includes a remote control, 18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
|
| BOSCH GRL4000CHVK Laser Package SPECIFICATIONS |
| Accuracy |
± 1/16 in. @ 100 ft. Horizontal Mode ± 1/8 in. @ 100 ft. Vertical Mode |
| Battery |
Lithium-Ion Battery |
Battery Voltage
|
18 Volt |
| Height |
11 inches
|
IP Rating
|
IP68
|
Laser Diode
|
635 nm, <1mW
|
| Length |
12.8 inches |
Leveling Type
|
Self-Leveling, Up to 5° |
| Material |
Plastic Composite |
Mounting Thread
|
5/8-11 |
Operating Temperature
|
14° F ~ 122° F
|
| Range |
Up to 4,000 feet (diameter)
|
| Weight |
8.2 lbs |
| Width |
7.4 inches
|
| Warranty |
1 Year on laser, Extended to 2 Years on laser with online product registration. |
| |
|

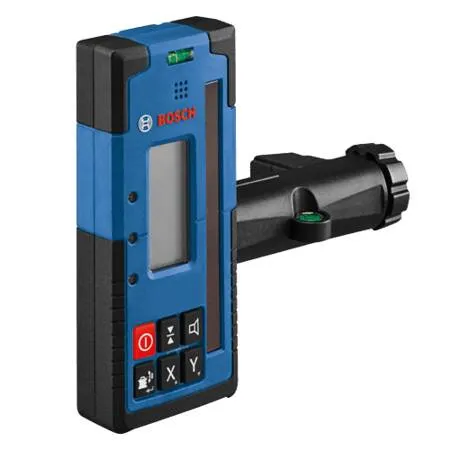

| DELUXE BOSCH LR40 Rotary Laser Receiver INCLUDED IN GLR4000-80CH PACKAGE |
|
|
2,000 Ft. Rotary Laser Receiver
The Bosch LR40 Rotary Laser Receiver is designed to increase the GRL4000-80CH and GRL4000-80CHV rotary laser detection up to 2,000 Ft., with a dual-sided backlit LCD display for use in darker areas or outdoors on both sides of the receiver. It has built-in X and Y-axes buttons that allows for elevation and cut-and-fill calculations in both axes up to ±8.5°. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery levels and audio signal. It also has LED indicators, to provide easy visual readout and simple operation. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive six-button keypad, receiver vial, attachment hook and ergonomic soft grip.
BOSCH LR40 Rotary Laser Receiver INCLUDES
- LR40 2,000 Foot Rotary Laser Receiver
- Mounting Bracket
- (2) AA Batteries
BOSCH LR40 Rotary Laser Receiver BENEFITS
- Receiver to extend working range – increases rotary detection up to 2,000 Ft., with easy-to-see LED indicators, adjustable audio
- Dual-sided backlit LCD display – illuminates easy-to-see up/down arrows, center line, accuracy level, battery levels and more
- Dual-sided indicators – provide easy visual readout on both sides of the receiver
- Oversized detection area – enables fast laser reception
- Built-in magnets – allow for secure attachment to metal surfaces
- Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control
- Intuitive six-button keypad – enables simple operation and center line function in both X and Y axes
- Receiver vial – helps ensure accurate leveling results
- Ergonomic soft grip – provides secure handling and comfort
|
|
|
