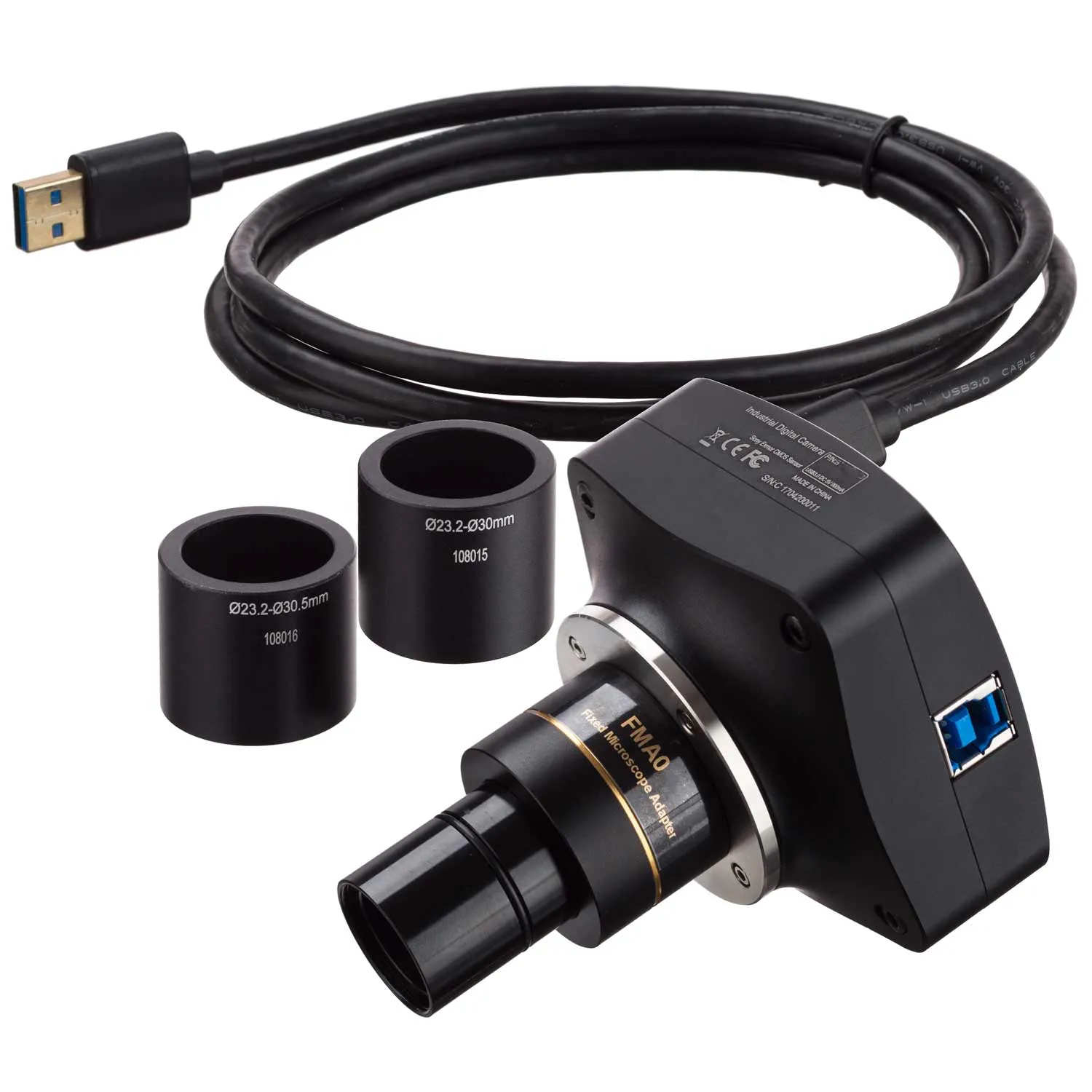

This pinnacle in imaging-technology provides high sensitivity and speed with global-shutter scanning. The MU233-GS uses Sony's cutting-edge 2.3-megapixel global-shutter CMOS sensor for high resolution with high quantum-efficiency. Larger pixels are used to increase well-capacity, improving sensitivity and dynamic-range. This translates to shorter exposure-times, lower noise, and the ability to better capture faint emissions. The global shutter improves imaging of moving subjects through simultaneous pixel-capture, avoiding the focal-plane distortion seen in rolling-shutter sensors.
With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Sensor
| Sensor | Sensor Type | Transfer Method | Binning | Sensitivity ?
|
|---|---|---|---|---|
| Sony IMX302 | Color CMOS | Global Shutter | 1x1 | 1016mv @ 1/30s |
| Optical Format | Sensor Size | Pixels | Pixel Size | Aspect Ratio |
| 1/1.2" | 13.4mm diagonal | 2.3M | 5.86µm x 5.86µm | 16:9 |
Camera
| Spectral Range (IR Cut Filter) |
Frame Rate(s) (Maximum) |
Exposure Time | Connectivity |
|---|---|---|---|
| 380nm - 650nm | 30fps @ 1920x1200 | 0.244ms - 2s | USB 3.0 |
| Lens-mount | Compensating Lens | Power | Compatibility |
|---|---|---|---|
| C-mount | 0.75X, 1X | 5V over USB | Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8 , Linux kernel 3.13 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed | ||||||||||||||||
| Features |
|
