SKU: LCW-5200-US

Convenient Size:

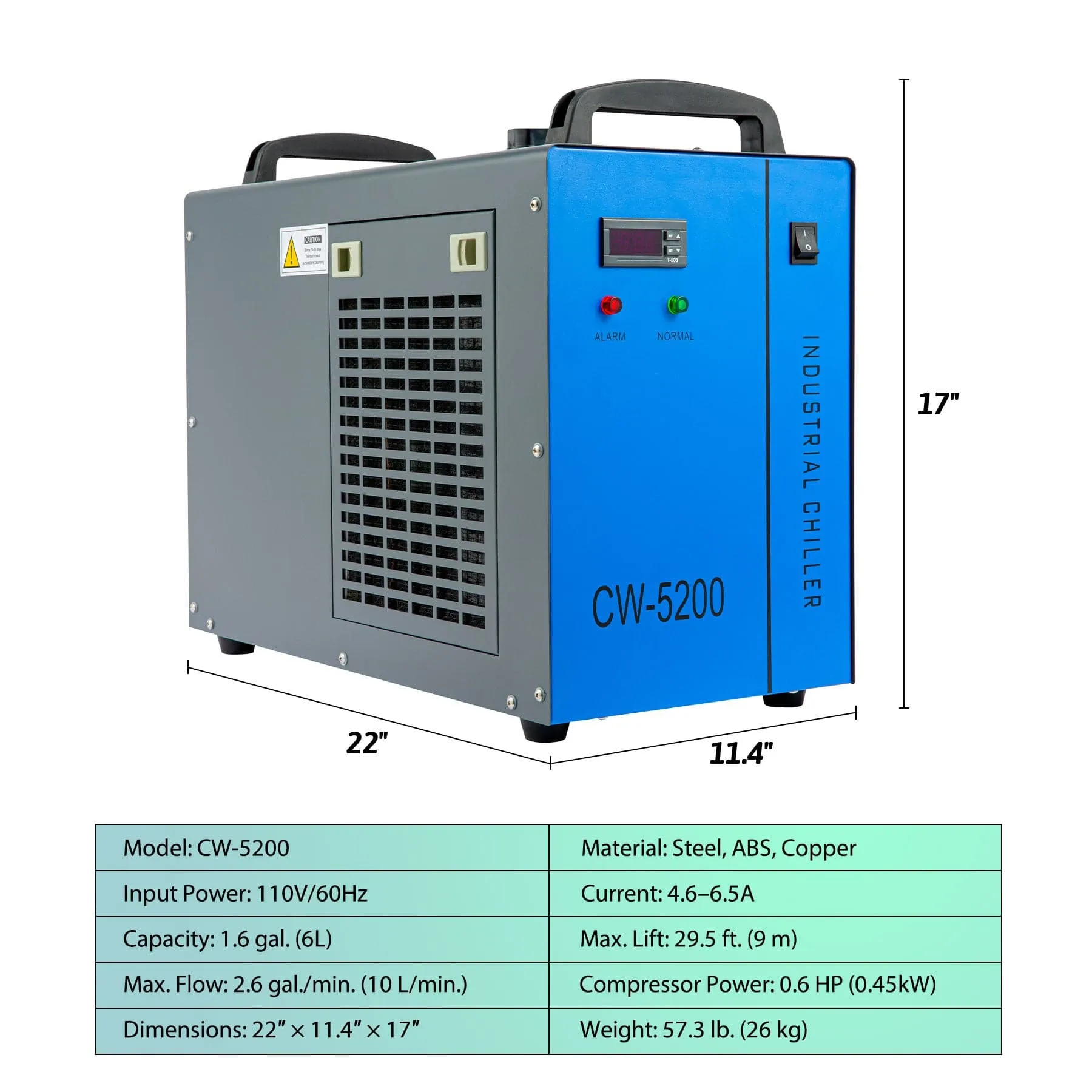

• 22” x 11.4” x 17” (56 x 29 x 43 cm) overall dimensions

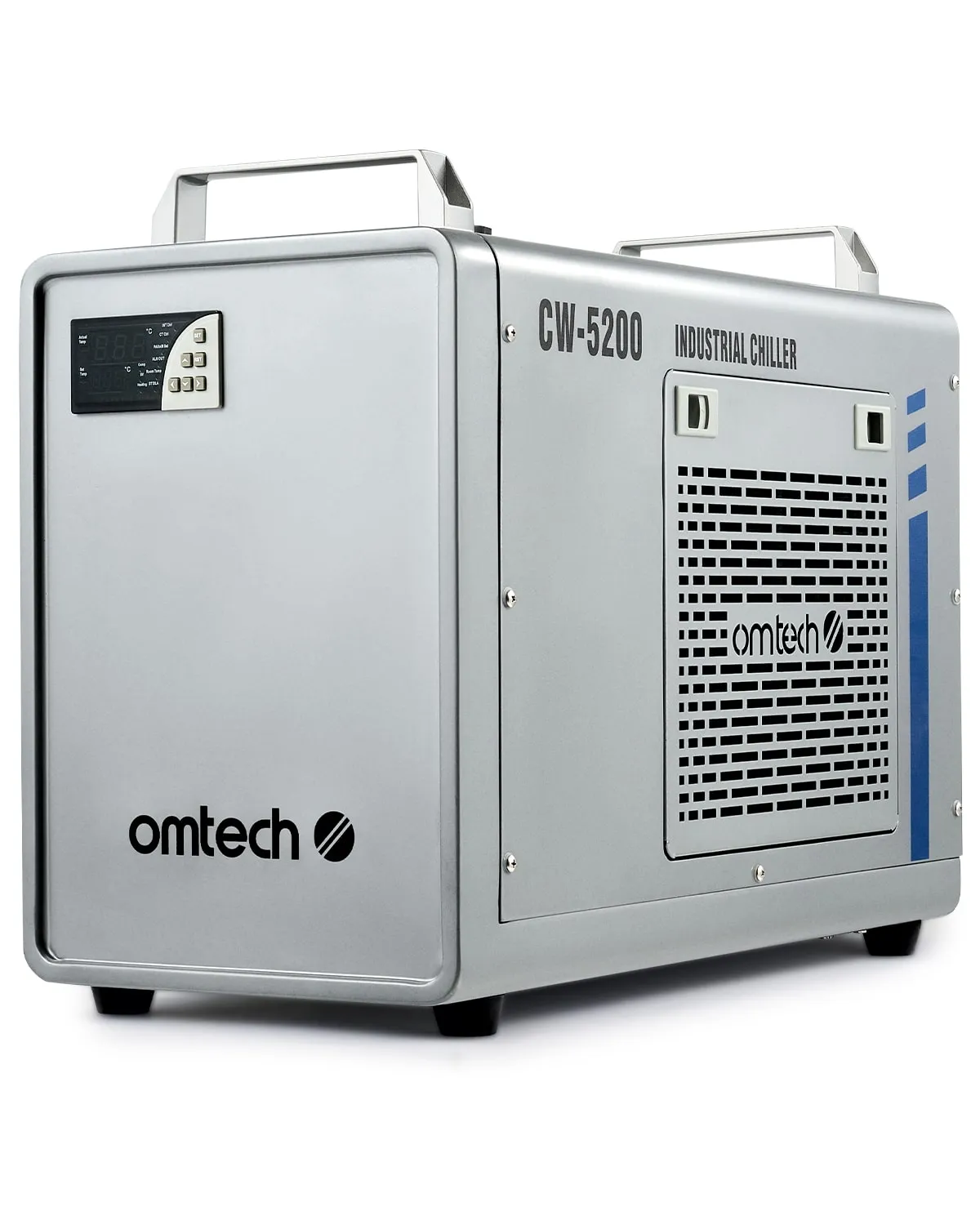

• NEW SILVER LOOK: 22.8 x 11.3 x 18.1 in. (58 x 28.8 x 46 cm) overall dimensions
• 57.3 lb. (26 kg) overall weight
• Spacious yet compact 1.6 gallon (6 L) tank
• Cool down your machine with ease while taking up little space.

Durability and Compatibility:

• This industrial water chiller machine is compatible with CO2 Laser Engravers of 50W and up

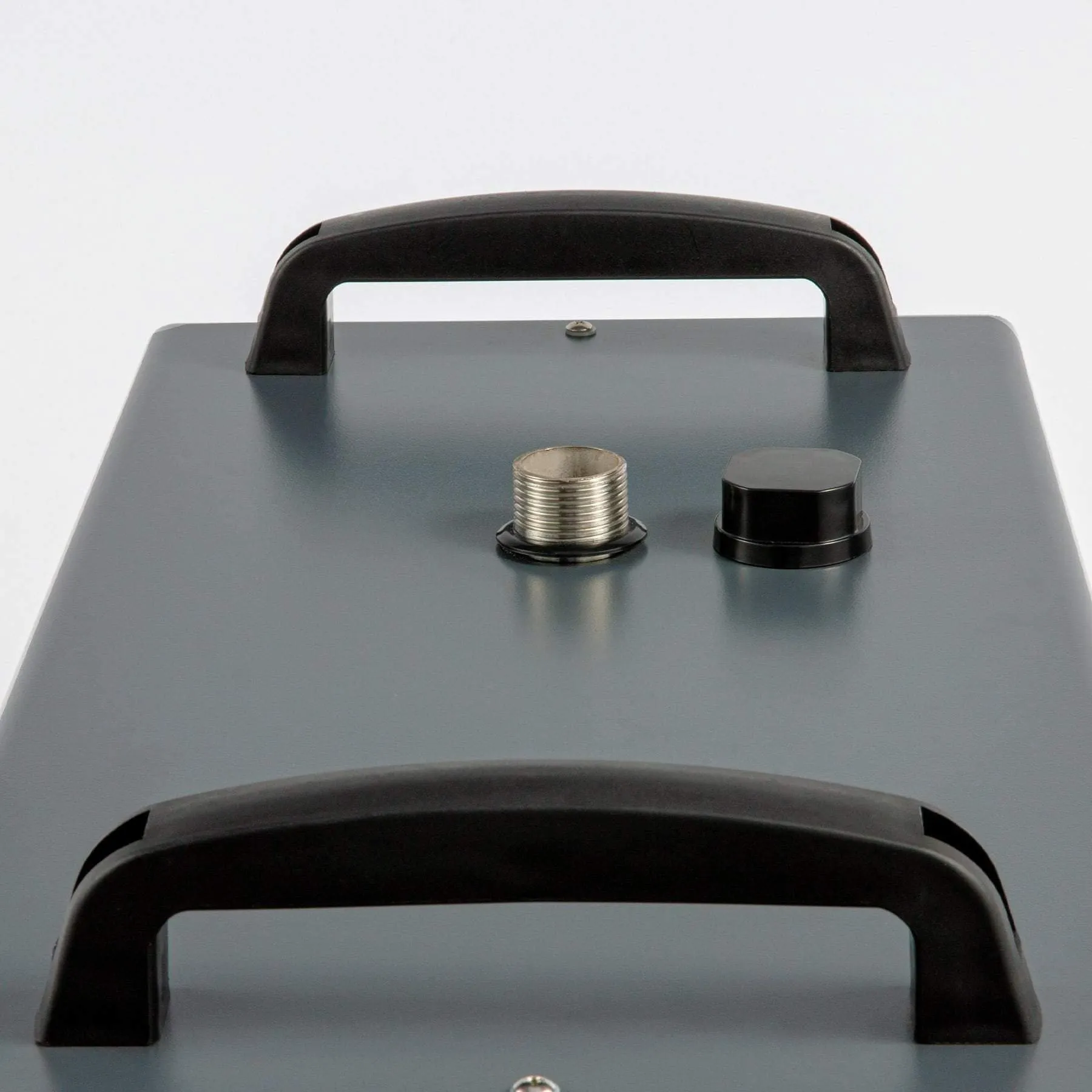

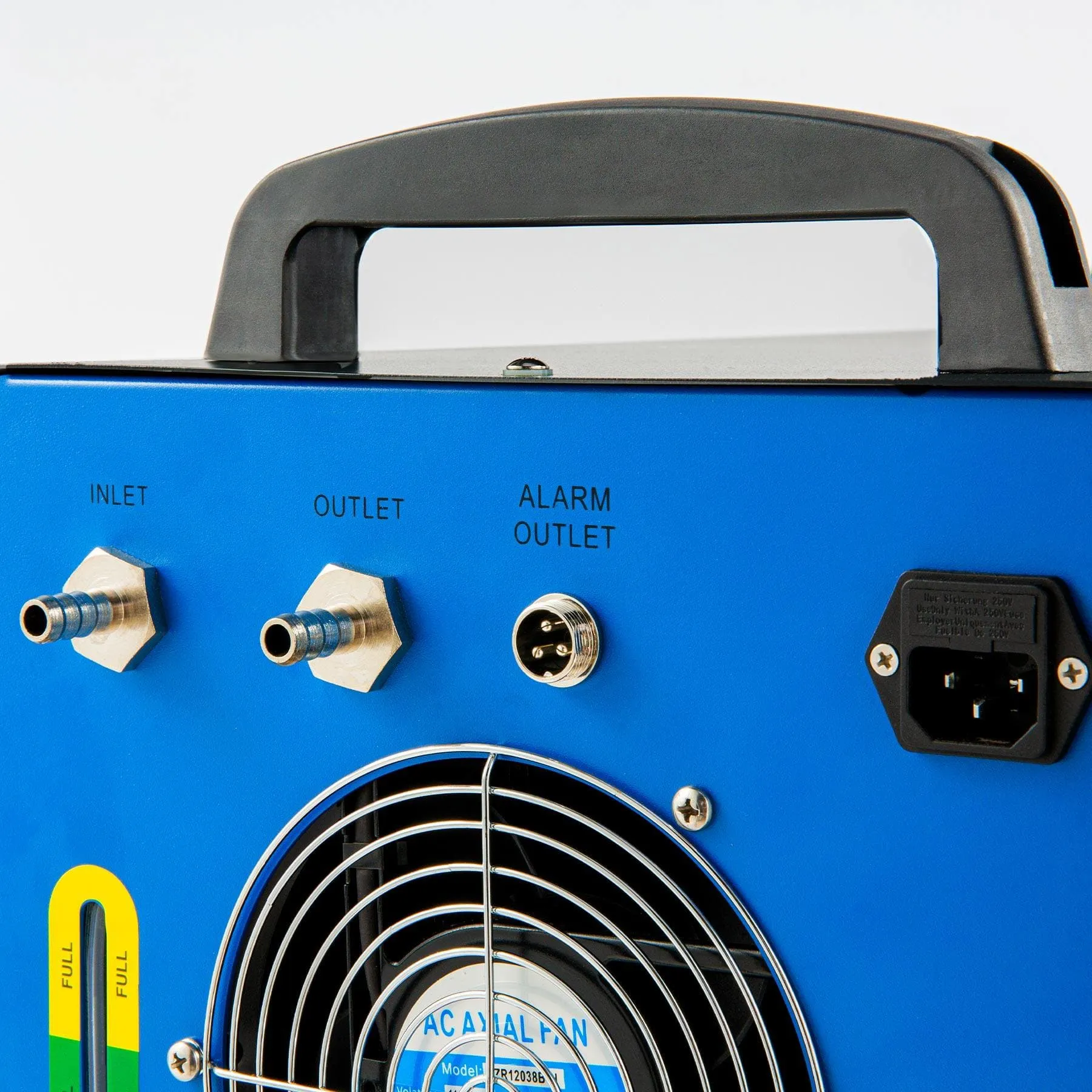

• The CW 5200 chiller is equipped with premium brass inlet and outlet (0.4 in. OD) ports for long-term, corrosion-free performance
• A consistent laser water cooler extends your laser tube’s lifespan
• Use ONLY with distilled water
• Heating function unavailable

Power:

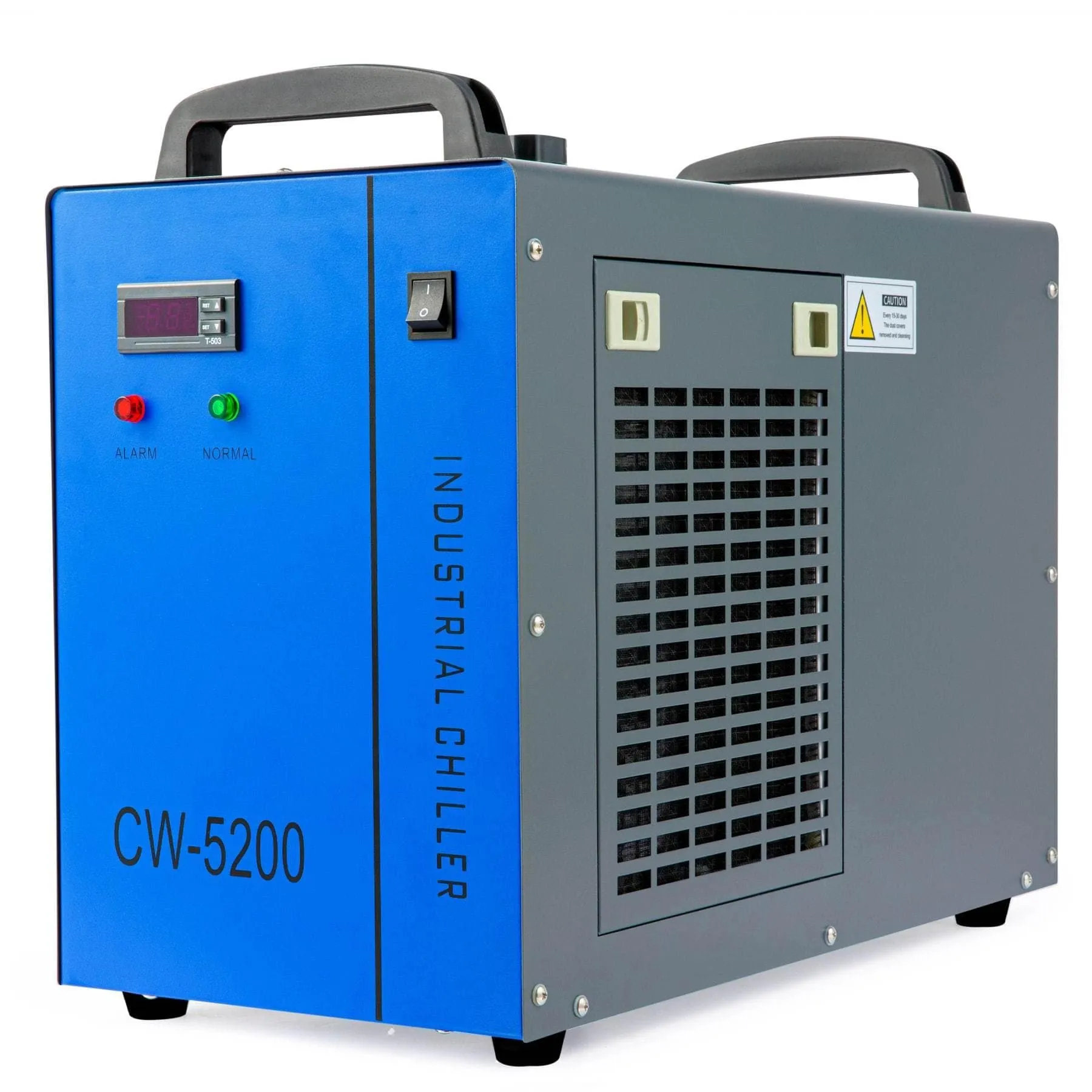

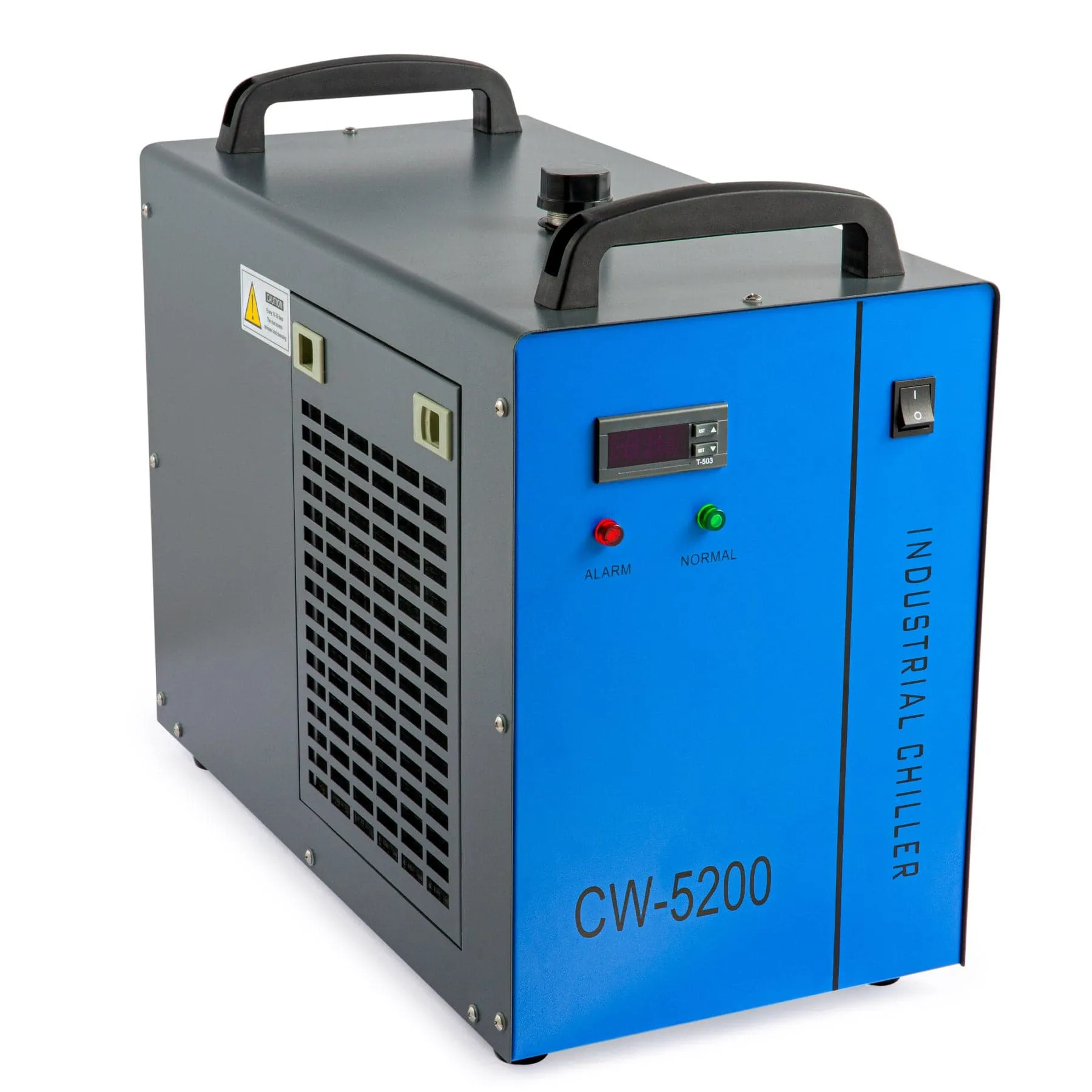

• Model: CW-5200 Chiller Machine

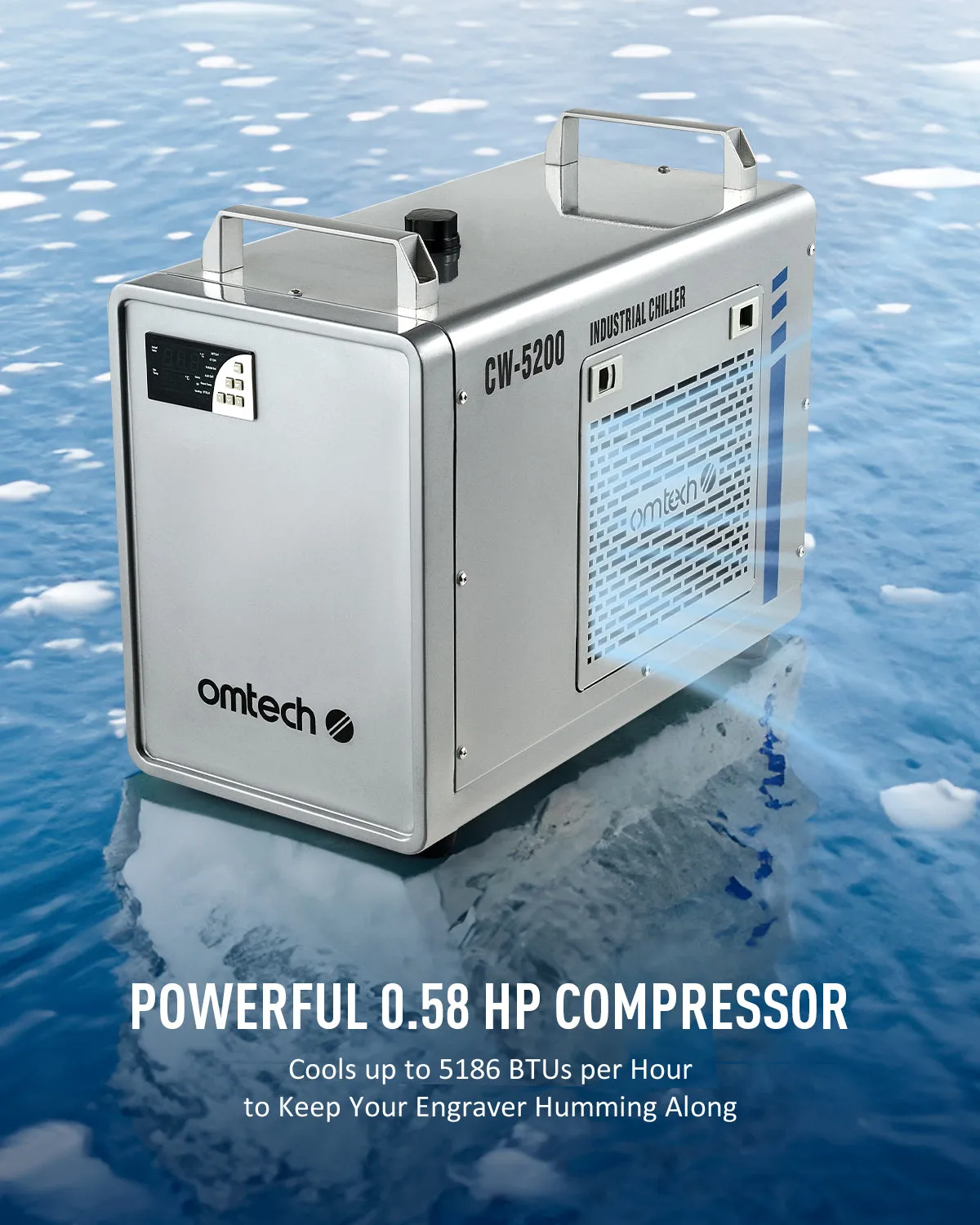

• Compressor Power: 0.6 HP (0.45kW)
• Input Power: 110 V / 60Hz
• Max Flow: 2.6 gal/min. (10L/min)
• Max Lift: 29.5 ft. (9 m)
• Current: 4.6-6.5A

Additional Features:

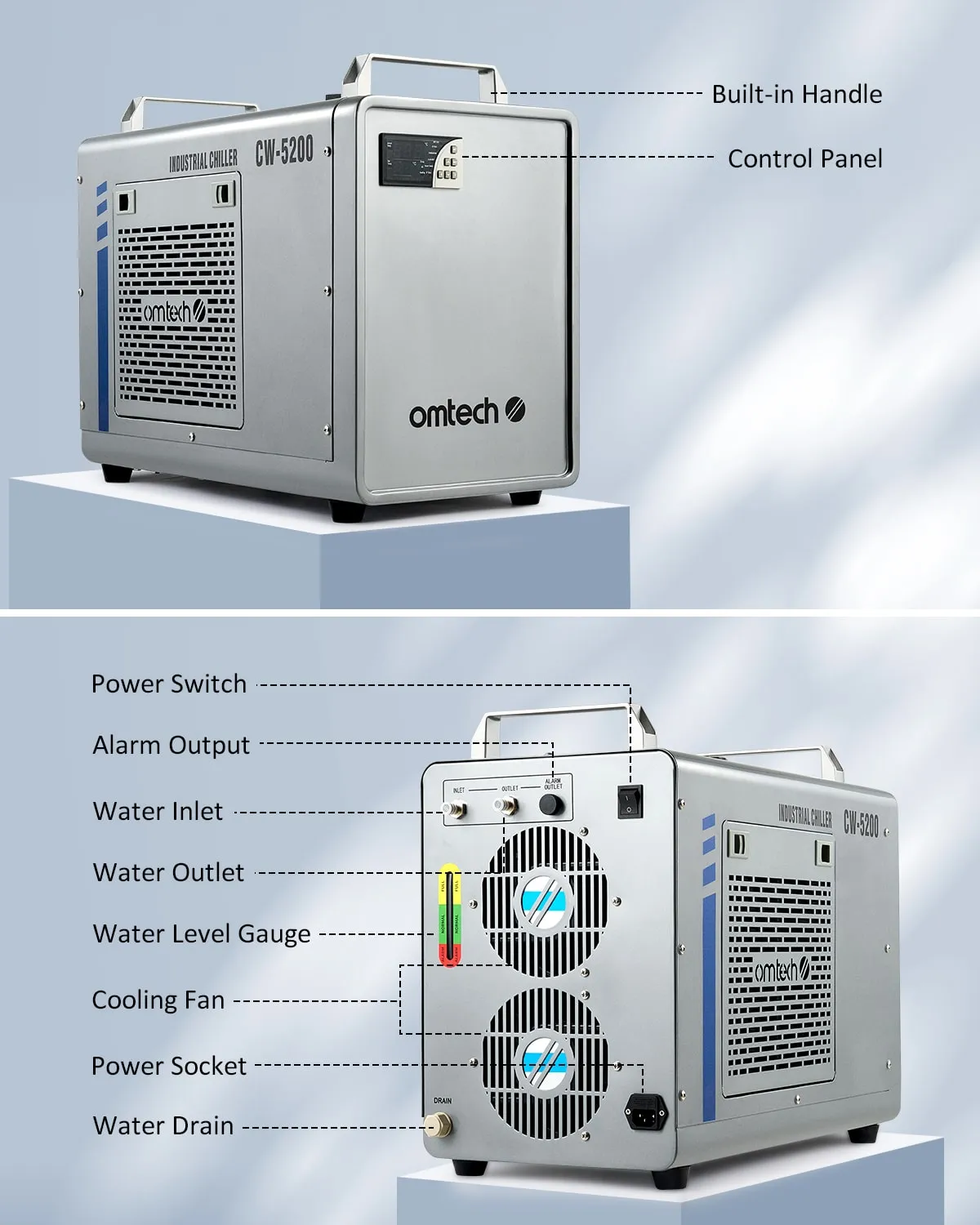

• NEW SILVER LOOK: DIGITAL DUAL TEMPERATURE DISPLAY: Our industrial water chiller uses internal sensors to constantly monitor water flow and temperature. It keeps track of both your actual machine temperature and set temperatures so you can work securely knowing your laser tube is safe from heat damage.

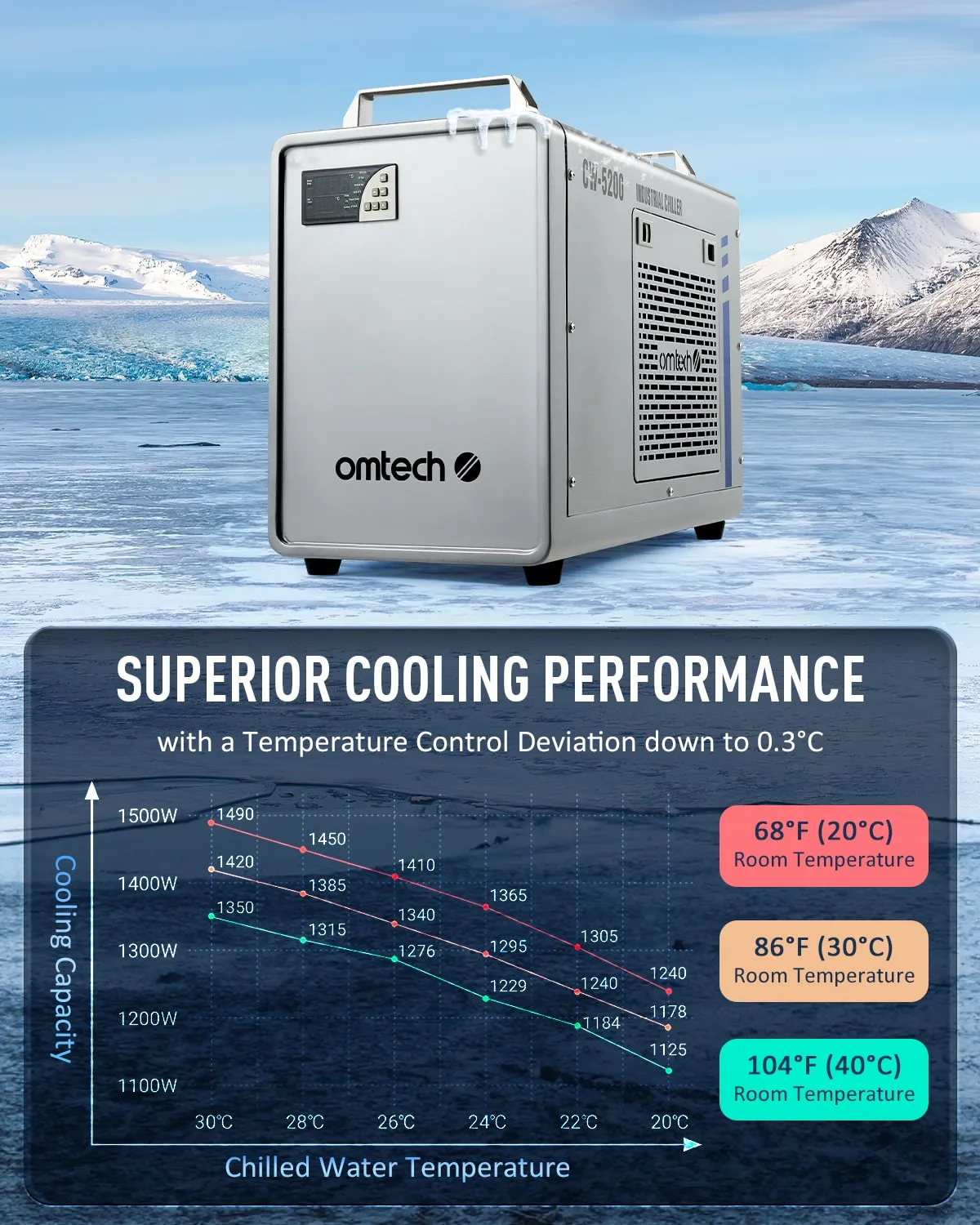

• NEW SILVER LOOK: ADDITIONAL MONITOR DISPLAYS: This water cooling system includes internal sensors to keep temperatures within 0.3℃ of constant and to let you know via digital display, indicator lights, and alarms when it's time to make adjustments.

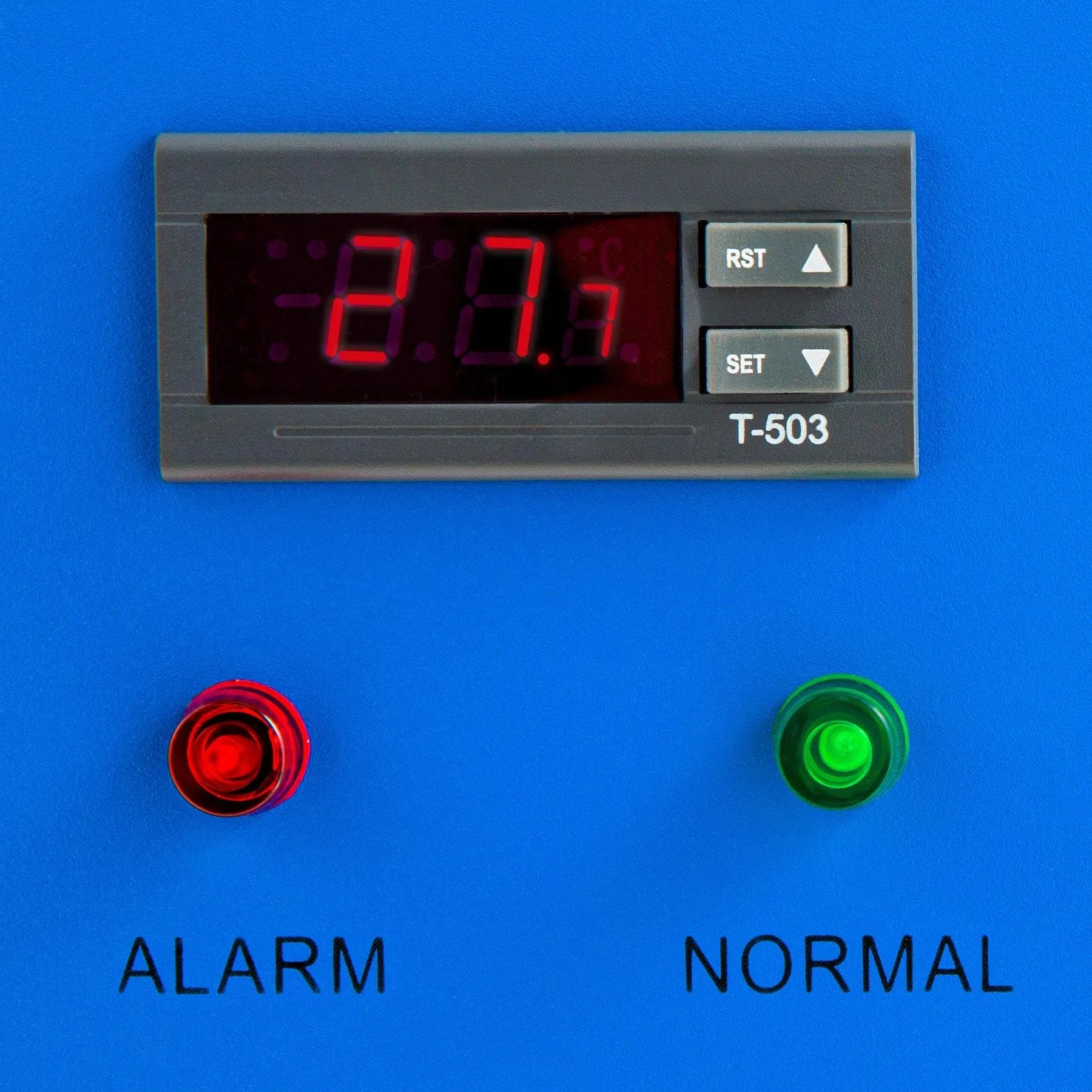

• DIGITAL DISPLAY: Our industrial water chiller uses internal sensors to constantly monitor water flow and temperature, so you can work securely knowing your laser tube is safe from heat damage.

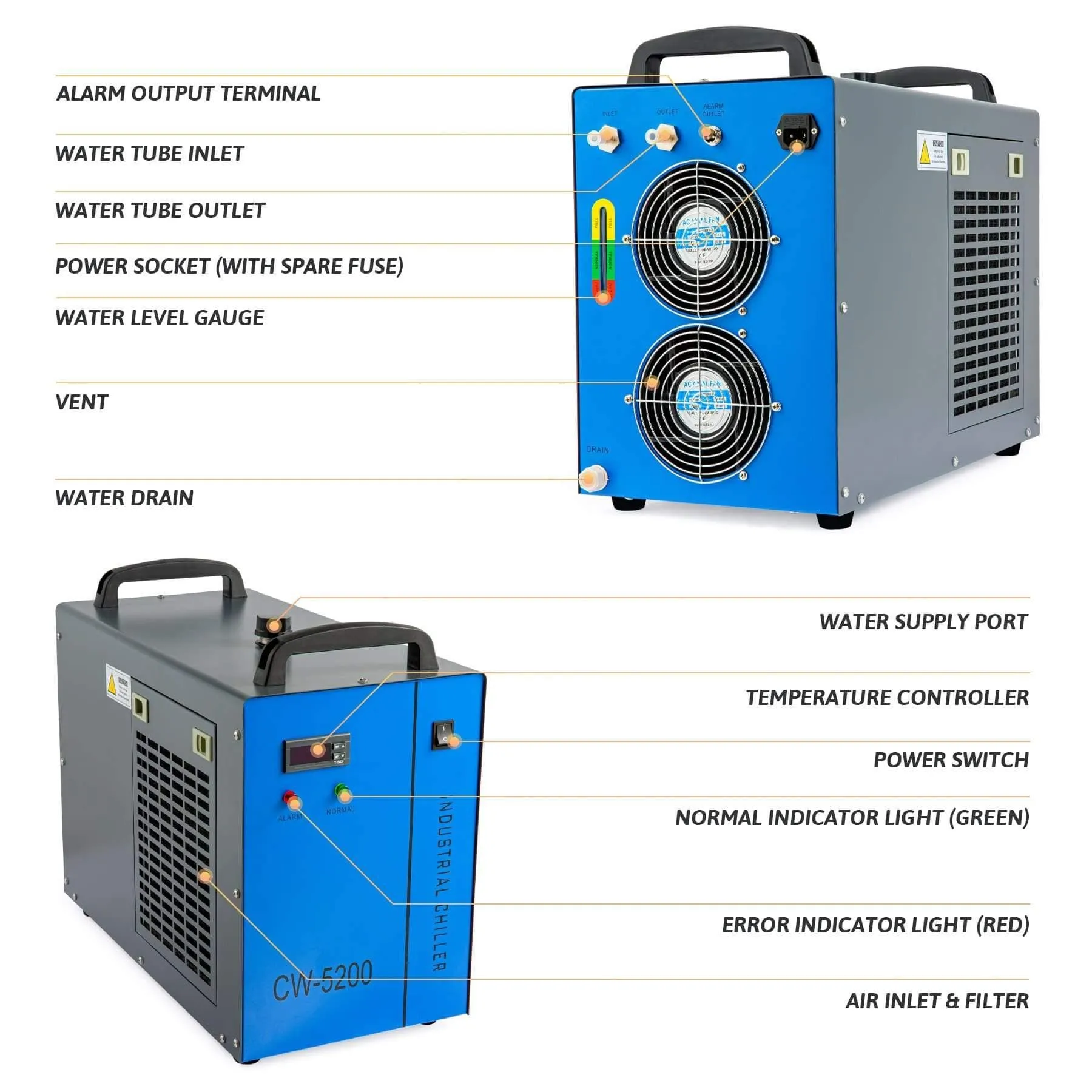

• WATER FLOW/LEVEL ALERTS: Indicator lights and built-in alarms warn you if the water level drops below the minimum threshold or if water flow stops.

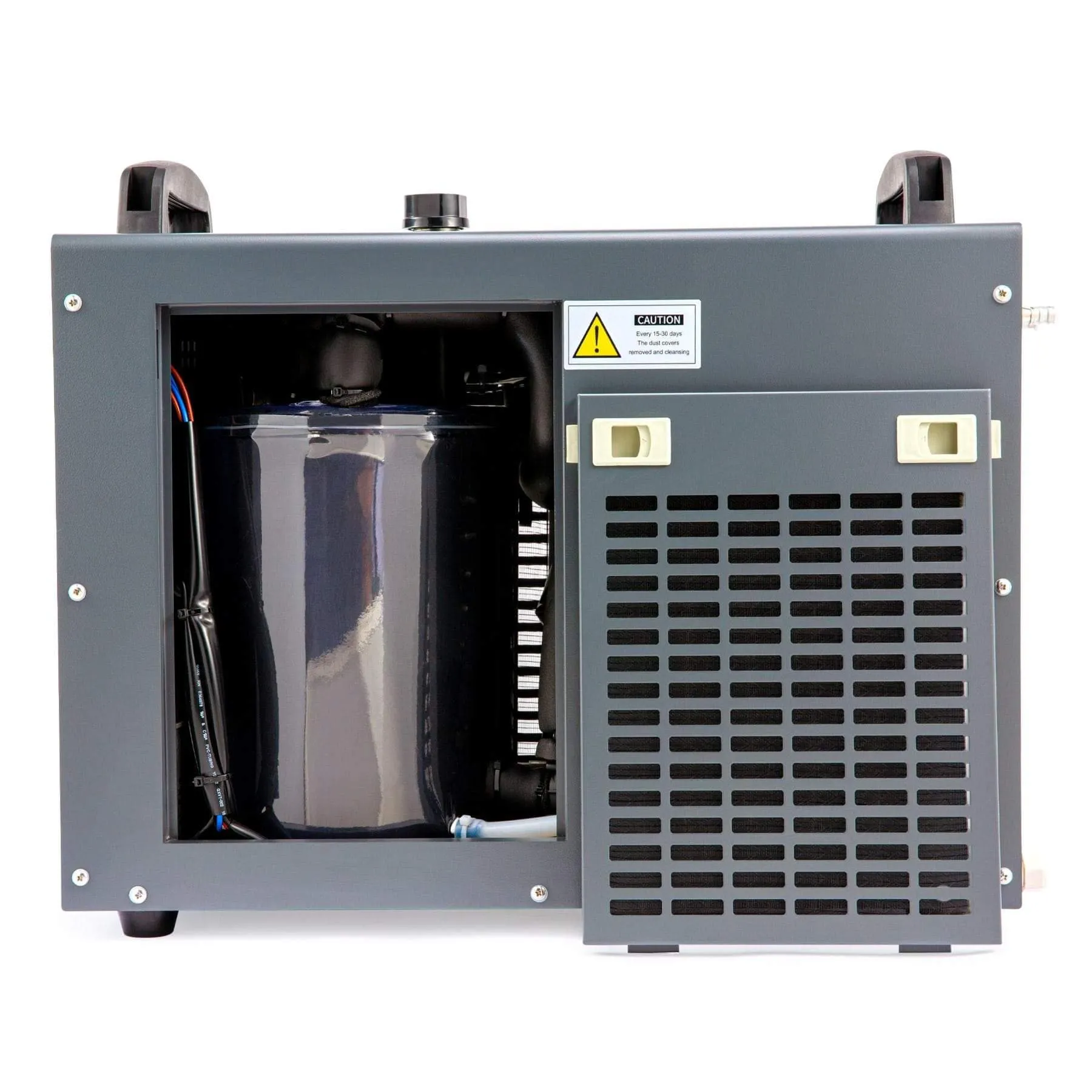

• RADIATOR FAN: This industrial water chiller is equipped with a powerful cooling fan that reduces heat buildup for effective cooling when you need it most.
• OBSERVATION WINDOW: Monitor the CW 5200 chiller’s water level at a glance.

Dual Operation Modes:

• INTELLIGENT CONTROL MODE detects ambient temperatures and adjusts the water temperature accordingly.
• CONSTANT TEMP. MODE maintains water temperature in your custom temp. range.

Package Includes:

• 1 x Industrial Water Chiller Machine
• 1 x Power Cord

• 1 x Alarm Signal Output Plug
• 1 x Spare Fuse
• 1 x User Manual

Warranty:

• No need to worry! We offer a 1-year warranty on all water chiller machines.

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification

Summary:

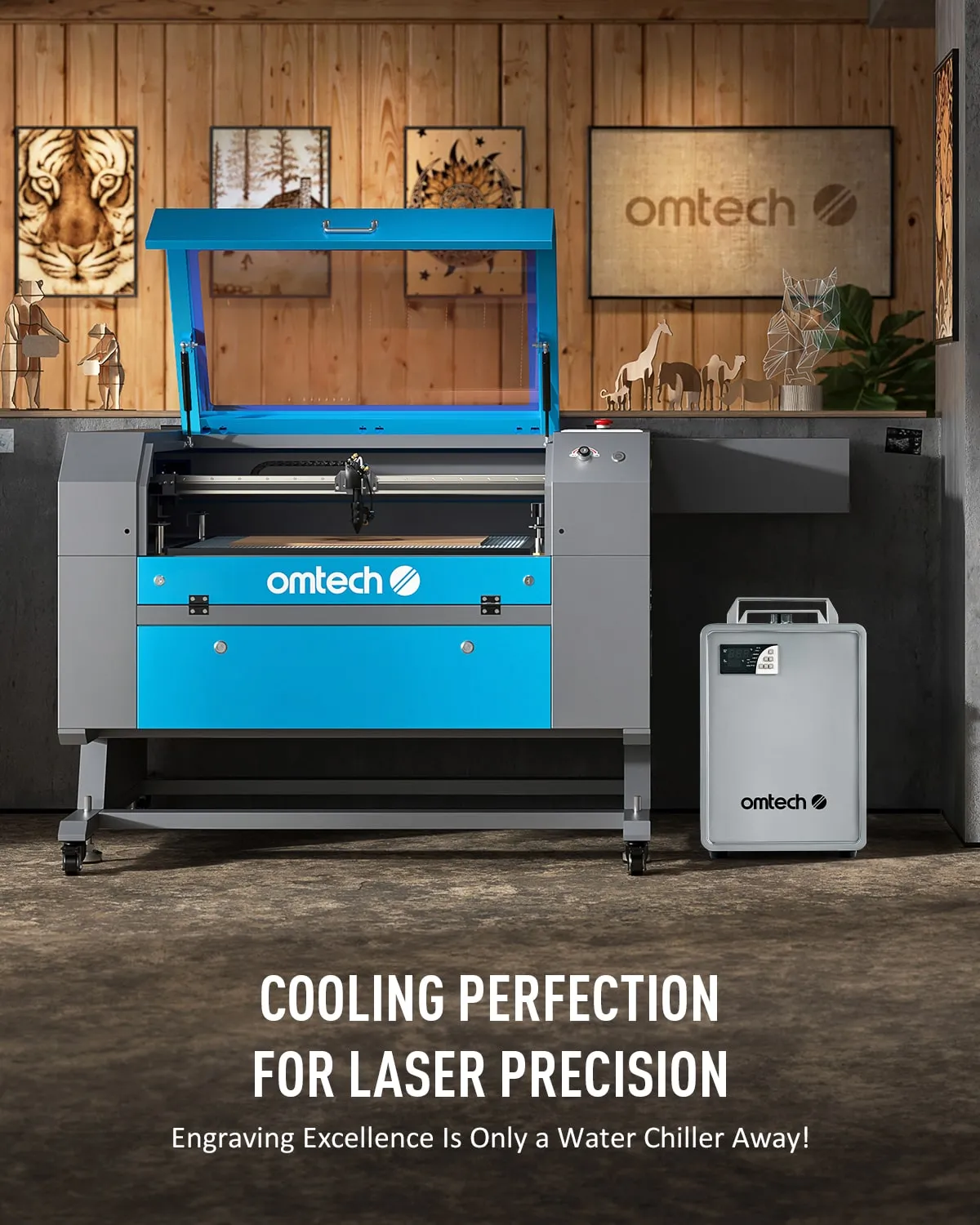

• Laser water coolers are essential to actively cool your laser tube with ease and reliability! OMTech's CW-5200 laser water chiller is known for its consistency, durability, and compatibility with CO2 Laser Engraver machines 50W and up. This accessory is essential for full-time engraving professionals and hobbyists who like to work their laser machines for more than 6 hours a day, as well as those who work in warmer regions with temperatures above 85℉/30℃.
