33k BTU 21.5 SEER Multi-Zone MrCool DIY 2 Zone Ductless Heat Pump Split System 4th Generation - 9k 24k
Elevate your comfort and climate control effortlessly with the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split – a remarkable innovation in DIY mini split systems. This versatile heat pump offers both cooling and heating capabilities, boasting a substantial 36,000 BTU heating capacity and an impressive SEER rating of 21.5, thanks in no small part to its cutting-edge variable speed DC inverter technology. The 24,000 BTU indoor air handler can efficiently regulate temperatures in spaces spanning 1,000 to 1,200 square feet, while the 9,000 BTU handler excels in covering rooms ranging from 375 to 450 square feet.
Installation is a breeze with the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split, requiring no specialized training, costly HVAC installers, or special tools. Its Quick Connect line set comes pre-charged with refrigerant, eliminating the need for vacuuming. Plus, it includes the innovative DIYPRO cable, offering mechanical protection without the need for an electrical conduit.
When it comes to controlling your environment, the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split provides multiple options. You can seamlessly manage it through the SmartHVAC app on your Apple or Android device, utilizing the provided USB devices for each indoor air handler. Alternatively, take command with your Amazon Alexa, Google Assistant, or the included remote.
Customizing your comfort is a breeze with various operational modes at your disposal. The primary auto mode lets you set your desired temperature, allowing the unit to automatically make necessary adjustments to maintain it.
Optimize your energy usage and savings with the sleep mode, designed to adjust the temperature by two degrees cooler or warmer over an 8-hour period while you slumber. It then maintains this temperature for the remaining 6 hours, resulting in lower utility costs.
Worry not about mold and mildew growth, as the anti-mildew function keeps the indoor unit pristine. Following shutdown, it continues to run at a low airflow for 10 minutes to prevent condensation buildup.

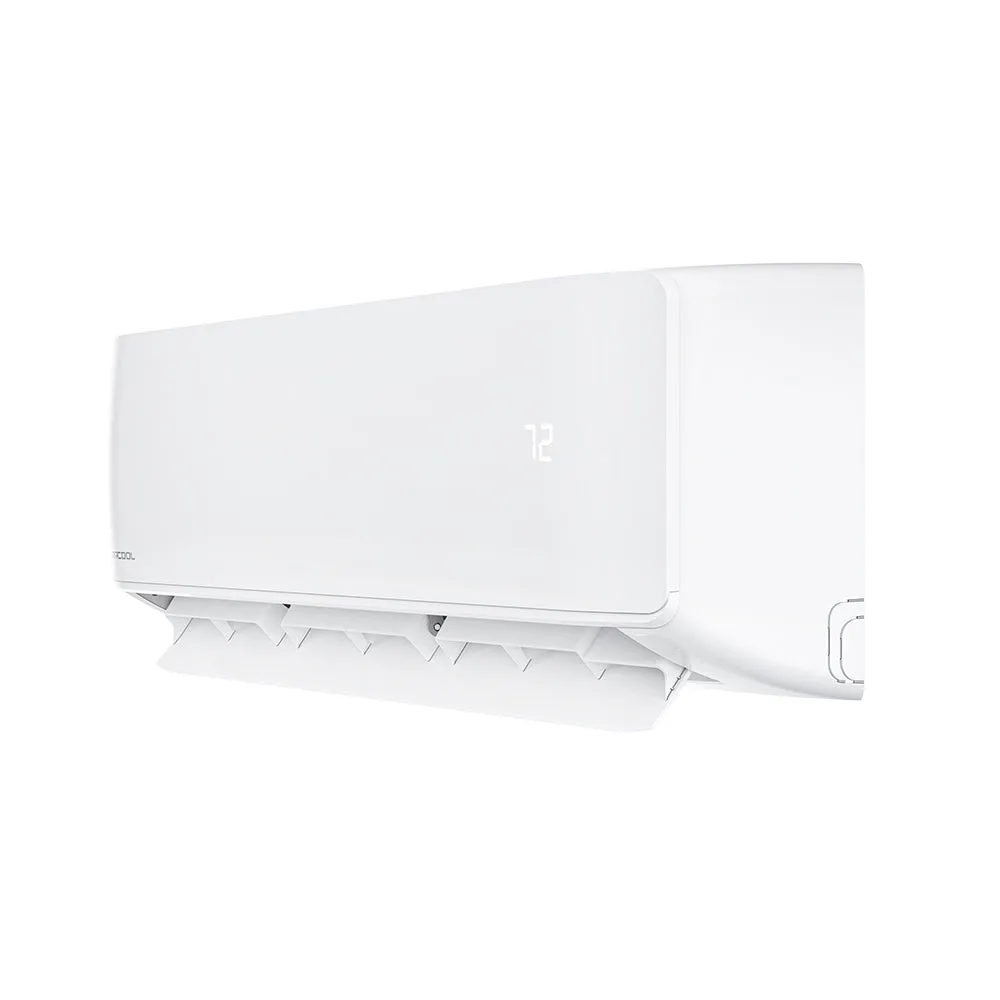

In the unlikely event of issues like low refrigerant, leaks, or reminders to clean or replace the air filter, the front panel of the air handler displays troubleshooting codes, easily referenced in the user manual for quick problem resolution. Address these alerts proactively to keep your unit in top condition, ensuring longevity. Maintain the unit's cleanliness with a dry or damp cloth, and wash the air filters with regular tap water.
For added peace of mind, this system is backed by the industry's first limited lifetime warranty, accompanied by a 7-year compressor warranty and a 5-year parts warranty. Invest in the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split for unparalleled comfort, convenience, and reliability.

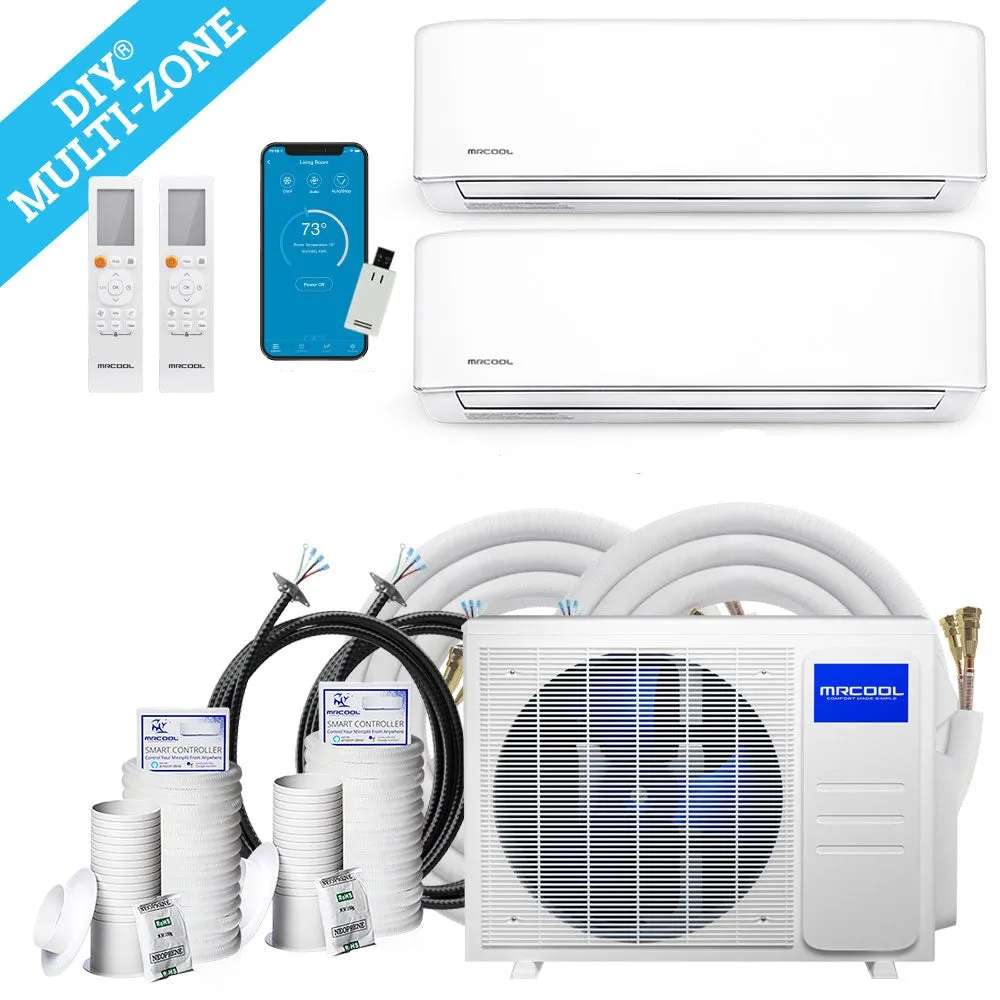

This Bundle Includes:
- 1x 36k BTU 21.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4th Generation - 4 Zone 240v
- 1x 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v
- 1x 24k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v
- 1x 1/4" x 1/2" MrCool DIY Ductless Split System Line Set - 25 Feet
- 1x 3/8" x 5/8" MrCool DIY Ductless Split System Line Set - 25 Feet
- 1x FREE GIFT: Free Condenser Wall Mounting Brackets ($119.99 Value)

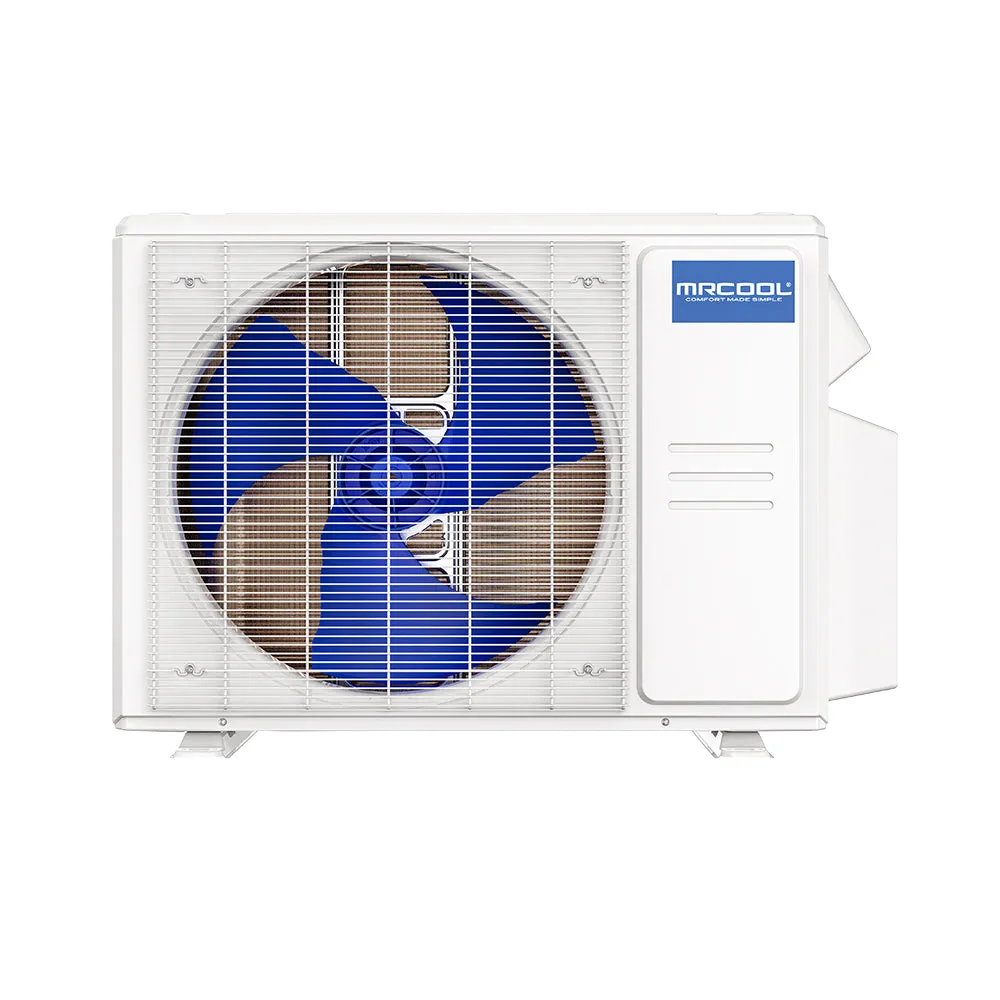

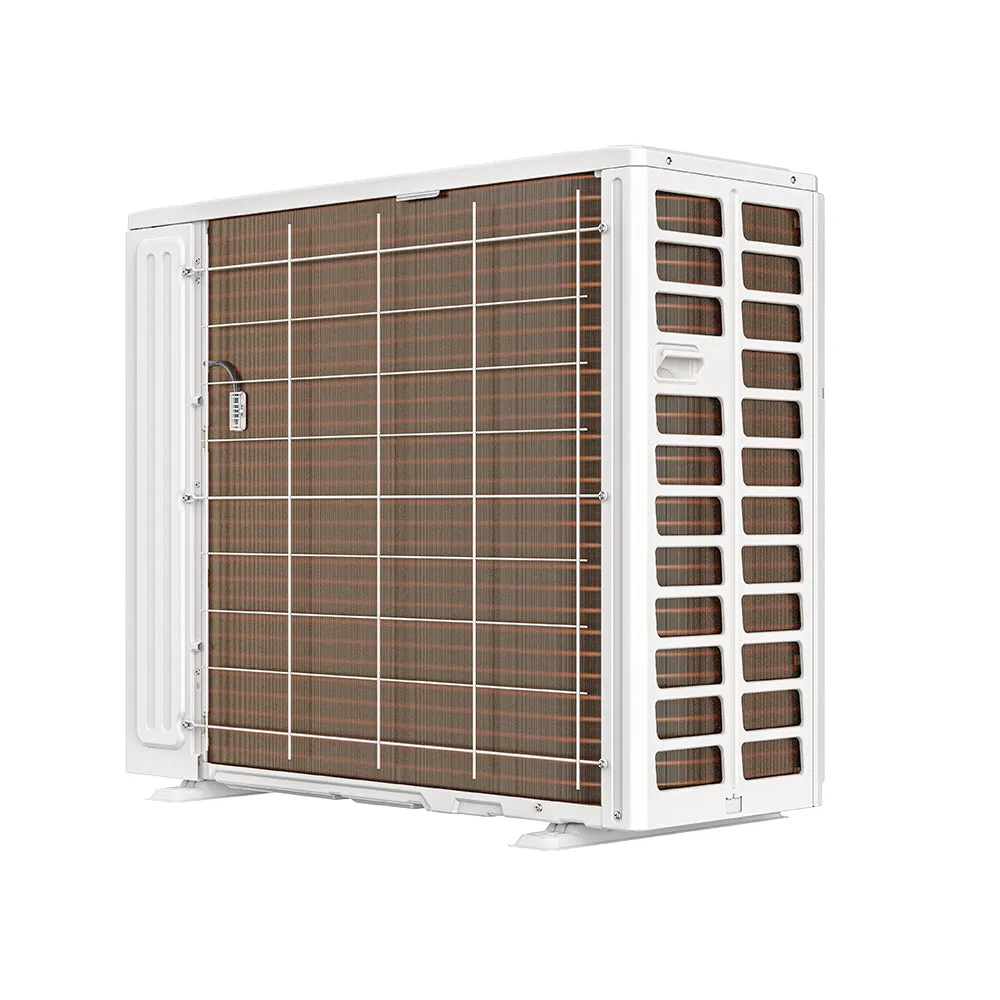

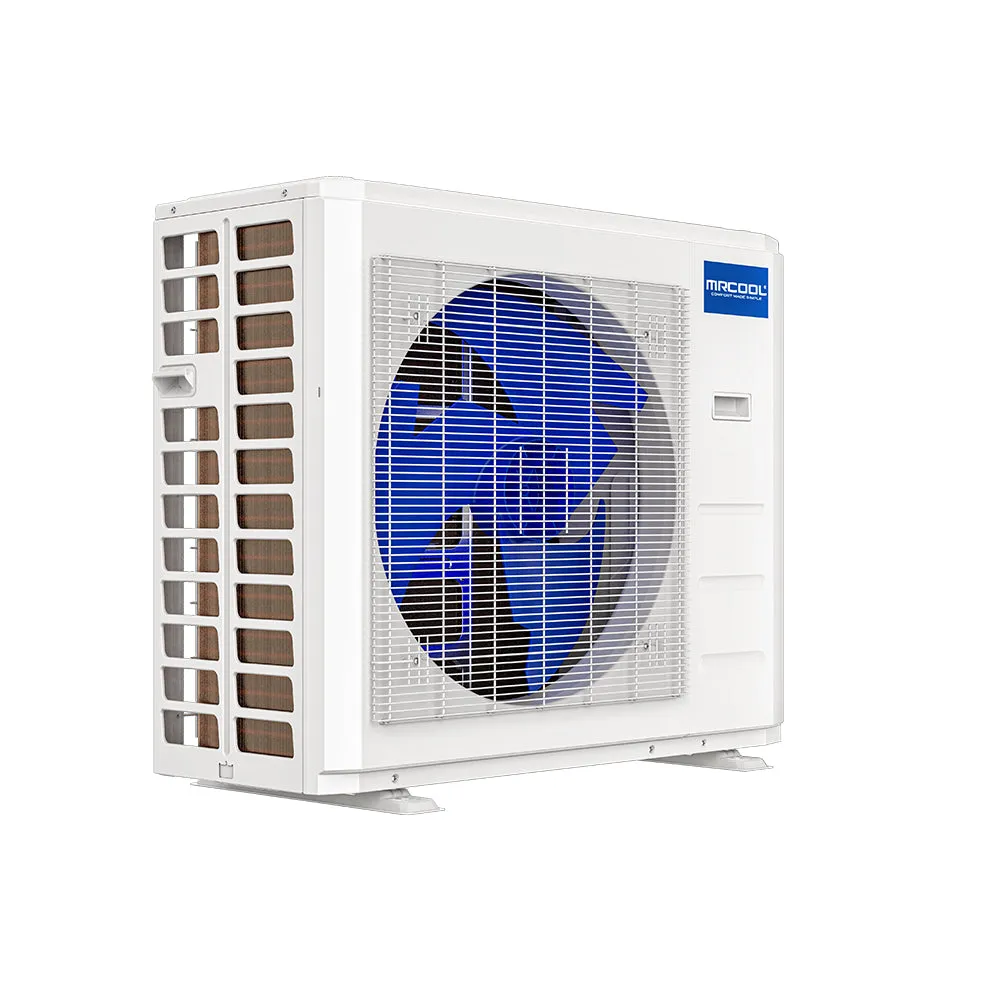

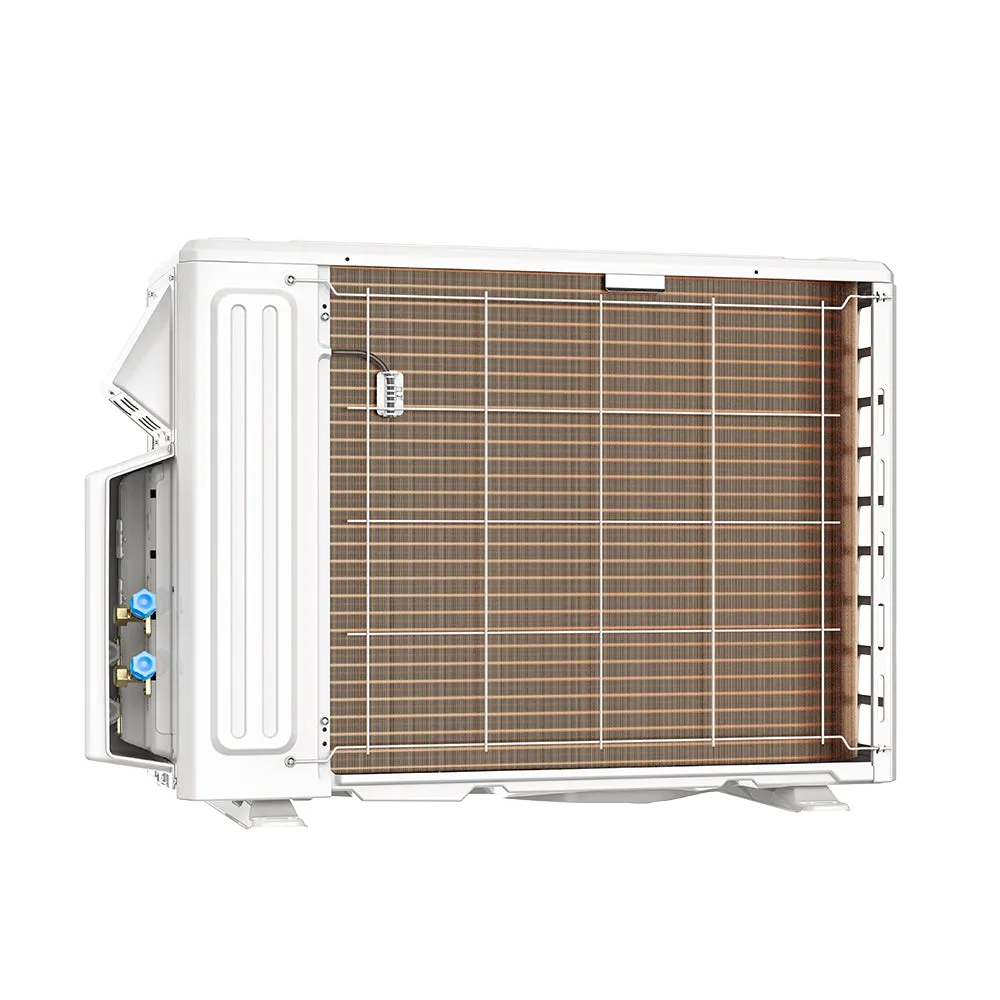

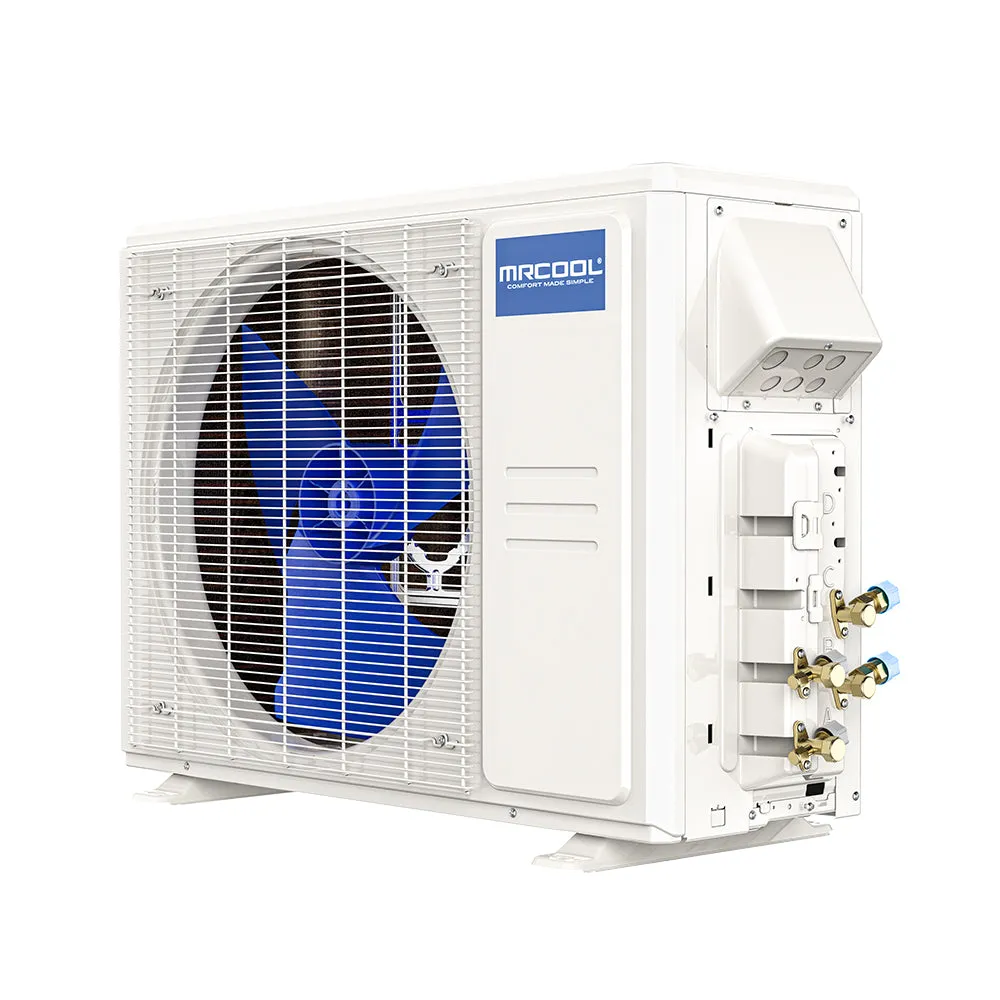

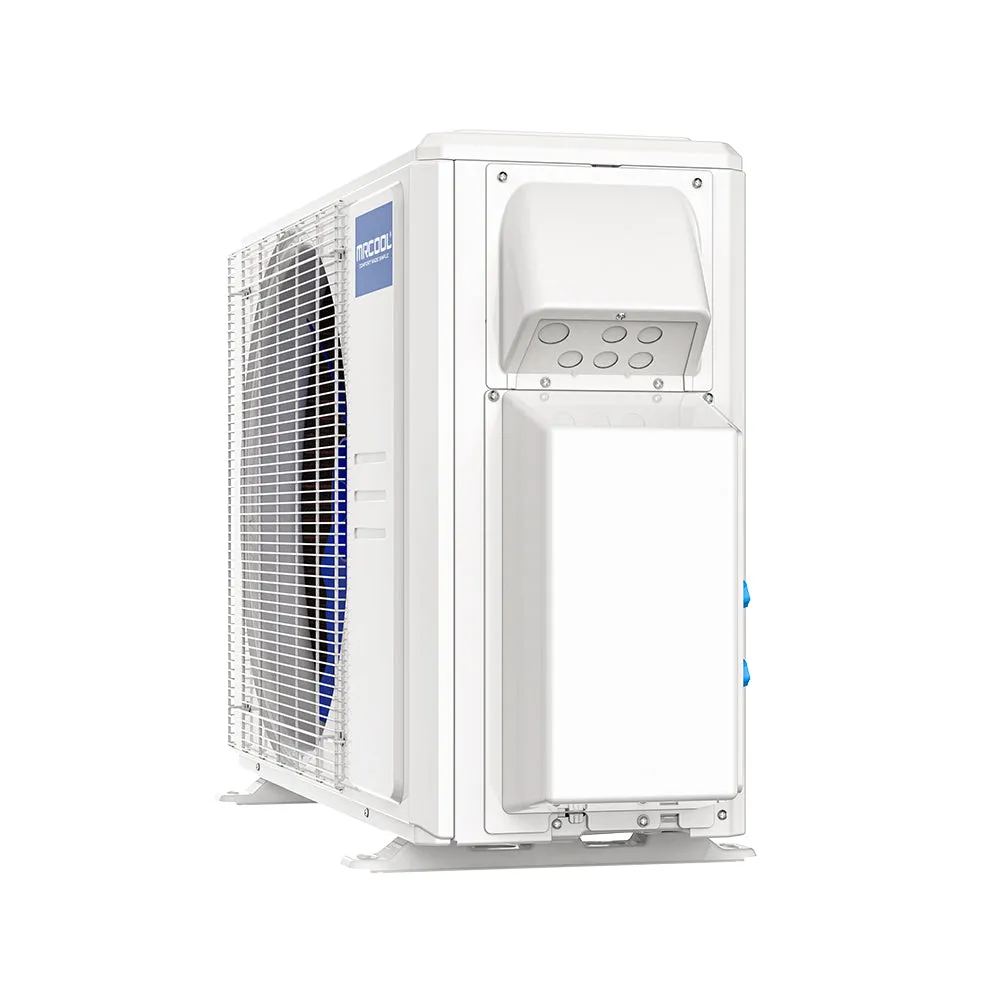

Condenser Specifications:
MODEL | DIY-MULTI4-36HP230C |
SEER | 21.5 |
EER | 10.5 |
HSPF | hspf4/hspf5 : 11/8.5 |
CFM | 2147.06 |
COOLING CAPACITY |
36000 BTU |
HEATING CAPACITY |
36000 BTU |
VOLTAGE |
208-230 V |
PHASE | 1 |
CYCLE | 60 Hz |
MAX FUSE BREAKER |
45 A |
MIN CIRCUIT AMPACITY |
27 A |
COLOR | White |
COLOR FAMILY |
White |
ZONE CAPACITY |
Up to 4 |
REFRIGERANT TYPE |
R-410A |
REFRIGERANT VOLUME |
134.04 oz |
DECIBEL RATING |
65 dBA |
INVERTER | Yes |
MIN AMBIENT COOL |
5F ~ 122F |
MIN AMBIENT HEAT |
-13F ~ 75.2F |
MAX LINESET LENGTH |
221 ft TOTAL |
LIQUID LINE SIZE |
1/4in (3/8in w/ adapter) |
SUCTION LINE SIZE |
1/2in (5/8in w/ adapter) |
COMPRESSOR MOTOR TYPE |
Rotary |
CONDENSER FAN MOTOR RPM |
1000/900/750 |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REGISTERED WARRANTY |
Limited Lifetime Compressor |
BASE WARRANTY |
5-year Parts/7-year Compressor |
BASE PARTS WARRANTY |
5-year Parts |
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY |
7-year Compressor |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
NET DEPTH |
16.14 in |
NET HEIGHT |
31.89 in |
NET WIDTH |
37.24 in |
NET WEIGHT |
170.42 lbs |
GROSS DEPTH |
19.88 in |
GROSS HEIGHT |
35.04 in |
GROSS WIDTH |
42.91 in |
GROSS WEIGHT |
187.83 lbs |

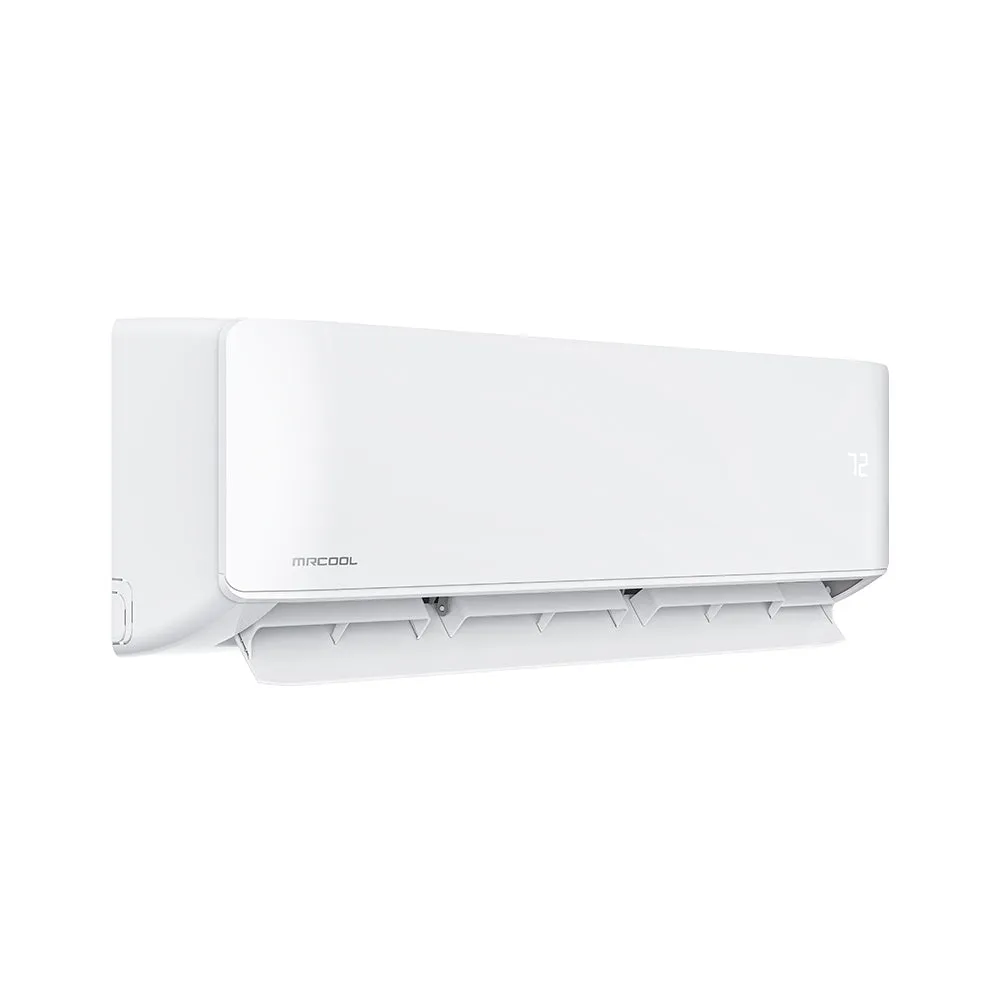

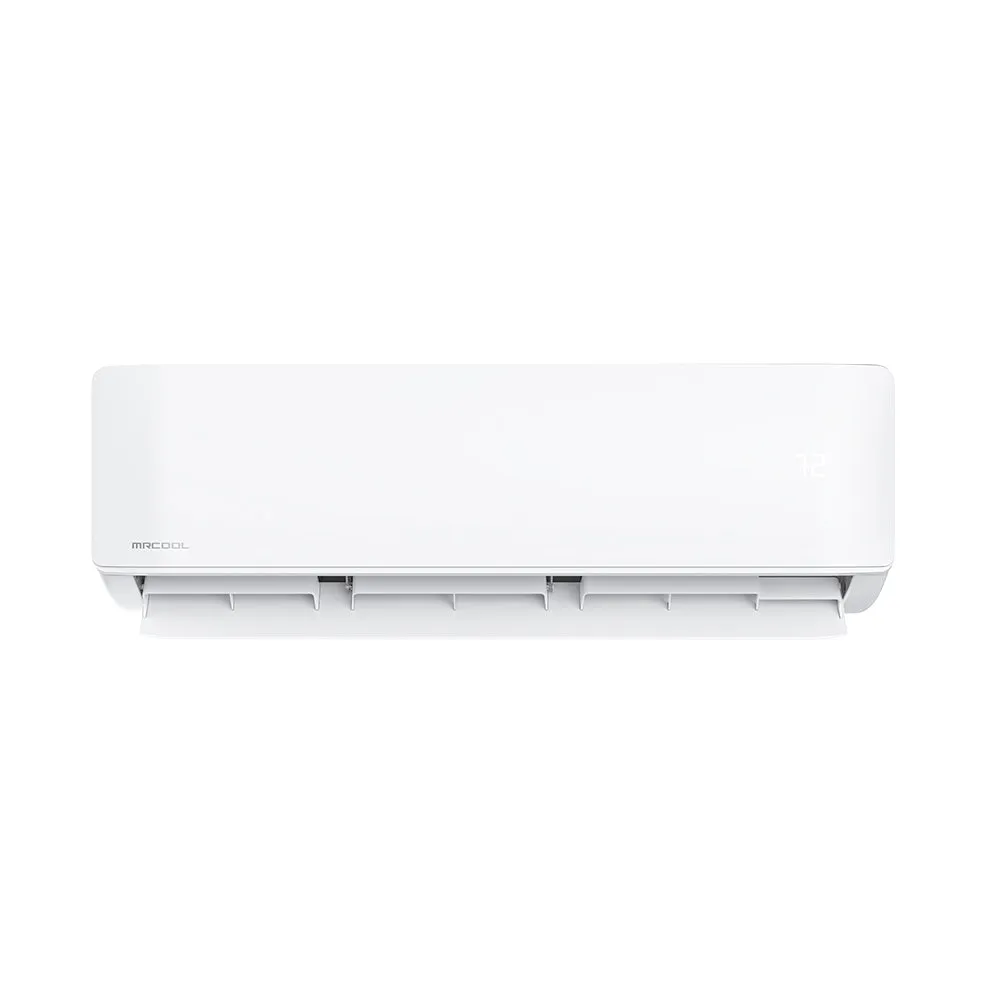

9K Air Handler Specifications:
MODEL | DIY-09-HP-WMAH-230C25 |
COOLING CAPACITY |
9000 BTU |
HEATING CAPACITY |
9000 BTU |
VOLTAGE |
208-230 V |
PHASE | 1 |
CYCLE | 60 Hz |
MAX FUSE BREAKER |
15 A |
MIN CIRCUIT AMPACITY |
3 A |
MOUNT TYPE |
Wall |
COLOR | White |
COLOR FAMILY |
White |
MAX COVERAGE AREA |
Up to 375 sqft |
REFRIGERANT TYPE |
R-410A |
DECIBEL RATING |
35 dBA |
DECIBEL RATING LOW |
25 dBA |
DECIBEL RATING HIGH |
40 dBA |
INVERTER | Yes |
LIQUID LINE SIZE |
1/4 in |
SUCTION LINE SIZE |
1/2 in |
BLOWER MOTOR RPM |
1050/850/650 |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REMOTE CONTROL INCLUDED |
Yes |
ENERGY STAR CERTIFIED |
Yes |
AHRI CERTIFIED |
Yes |
REGISTERED WARRANTY |
Limited Lifetime Compressor |
BASE WARRANTY |
5-year Parts/7-year Compressor |
BASE PARTS WARRANTY |
5-year Parts |
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY |
7-year Compressor |
HAS BATTERIES |
Yes |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
RESTRICTED STATES |
GU;PR;VI |
NET DEPTH |
7.44 in |
NET HEIGHT |
11.69 in |
NET WIDTH |
31.57 in |
NET WEIGHT |
23.81 lbs |
GROSS DEPTH |
16.34 in |
GROSS HEIGHT |
13.98 in |
GROSS WIDTH |
36.02 in |
GROSS WEIGHT |
34.39 lbs |
24K Air Handler Specifications:
MODEL | DIY-24-HP-WMAH-230C25 |
COOLING CAPACITY |
23000 BTU |
HEATING CAPACITY |
25000 BTU |
VOLTAGE |
208-230 V |
PHASE | 1 |
CYCLE | 60 Hz |
MOUNT TYPE |
Wall |
COLOR | White |
COLOR FAMILY |
White |
MAX COVERAGE AREA |
Up to 1000 sqft |
REFRIGERANT TYPE |
R-410A |
DECIBEL RATING |
48.5/43.5/33 |
DECIBEL RATING LOW |
33 dBA |
DECIBEL RATING HIGH |
48.5 dBA |
INVERTER | Yes |
MAX LINESET LENGTH |
98.42 ft |
LIQUID LINE SIZE |
3/8 in |
SUCTION LINE SIZE |
5/8 in |
BLOWER MOTOR RPM |
1200/1000/700 |
FAN ONLY OPTION |
Yes |
QUIET MODE |
Yes |
AUTO COOL |
Yes |
WIFI COMPATIBILITY |
Yes |
APP COMPATIBILITY |
Yes |
WORKS WITH IOS |
Yes |
WORKS WITH ANDROID |
Yes |
REMOTE CONTROL INCLUDED |
Yes |
ENERGY STAR CERTIFIED |
Yes |
AHRI CERTIFIED |
Yes |
REGISTERED WARRANTY |
Limited Lifetime Compressor |
BASE WARRANTY |
5-year Parts/7-year Compressor |
BASE PARTS WARRANTY |
5-year Parts |
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY |
7-year Compressor |
HAS BATTERIES |
Yes |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS AEROSOL |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
RESTRICTED STATES |
GU;PR;VI |
NET DEPTH |
8.90 in |
NET HEIGHT |
13.19 in |
NET WIDTH |
42.52 in |
NET WEIGHT |
35.27 lbs |
GROSS DEPTH |
19.57 in |
GROSS HEIGHT |
17.32 in |
GROSS WIDTH |
49.09 in |
GROSS WEIGHT |
60.19 lbs |
